2000L Professional beer brewery equipment manufacturer

Model No.︰

RM2000L

Brand Name︰

RAINBOW

Country of Origin︰

China

Unit Price︰

US $ 69999 / pc

Minimum Order︰

1 pc

Share on:

Product Description

Company Profile:



We, Jinan Rainbow Machinery Co., Ltd  are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-10000L per patch (used for home, pub/hotel, factory, etc.) at a very competitive price, with product design, production, sales, and installation support.



                                                         Professional factory beer brewing equipment

 MAIN CONFIGURATIONS:

 This brewhouse system includes 3 tanks(mash tun/lautering tun, brew kettle/whirlpool, hot liquid tank), please check the details in the following chart.

Optional:  1- mash/lauter tun, brew kettle/whirlpool

                  2- mash/brew kettle, lauter tun/whirlpool

                  3- mash tun, lauter tun, brew kettle/whirlpool

                  4- mash tun, lauter tun, brew kettle, whirlpool

This is the 2000L brewing system configuration for your reference.

Items

Equipment

Specification

Quantity

(PCS)

Malt miller

Malt miller

200kg/hour

1

Brew house

Mash tun/lautering tun

2000L

1

Brew kettle/whirlpool

2000L

1

Hot liquid tank

2000L

1

Plate heat exchanger

18 m2

1

Pump

3 m³/h

1

Wort oxygenator



1

Working platform



1

Fermentation

Fermenter

2000L

6

Yeast tank

50L

1

Cooling unit

Glycol water tank

3500L

1

Cooling compressor

10hp

2

Water pump

3 m³/h

1

CIP unit

Alkali tank

100L

1

Sterilization tank

100L

1

Pump

3 m³/h

1

Control unit

Siemens PLC controlling system

1

Filter system

Kieselguhr filter machine

500L/H

1

Bright tank

2000L

1

Spare parts

All necessary spare parts such as pipes, va es, gauges and clamps…etc.



Heating source: electricity, baine-marie heating, gas fired or steam

Material: stainless steel 304 or copper

Warranty: 36 months for main equipments





Main features of brewhouse and fermentation:

Brewhouse system:

1) - inner wall stainless steel 304, 3mm;

    - surface wall stainless steel 304 or copper, 1.5mm

2) Dome top, top manway with glass

    Side manway, cone bottom 160 degree

3) - insulation: polyurethane/rockwool 100mm;

     - with inside CIP washing ball

     - raking agitator

     - removable false bottom

    - sparging arm, sight glass

      -Tangentiainlet for whirlpool

      -Thermowell for temperature sensor and thermometer....

Sample:

Details:

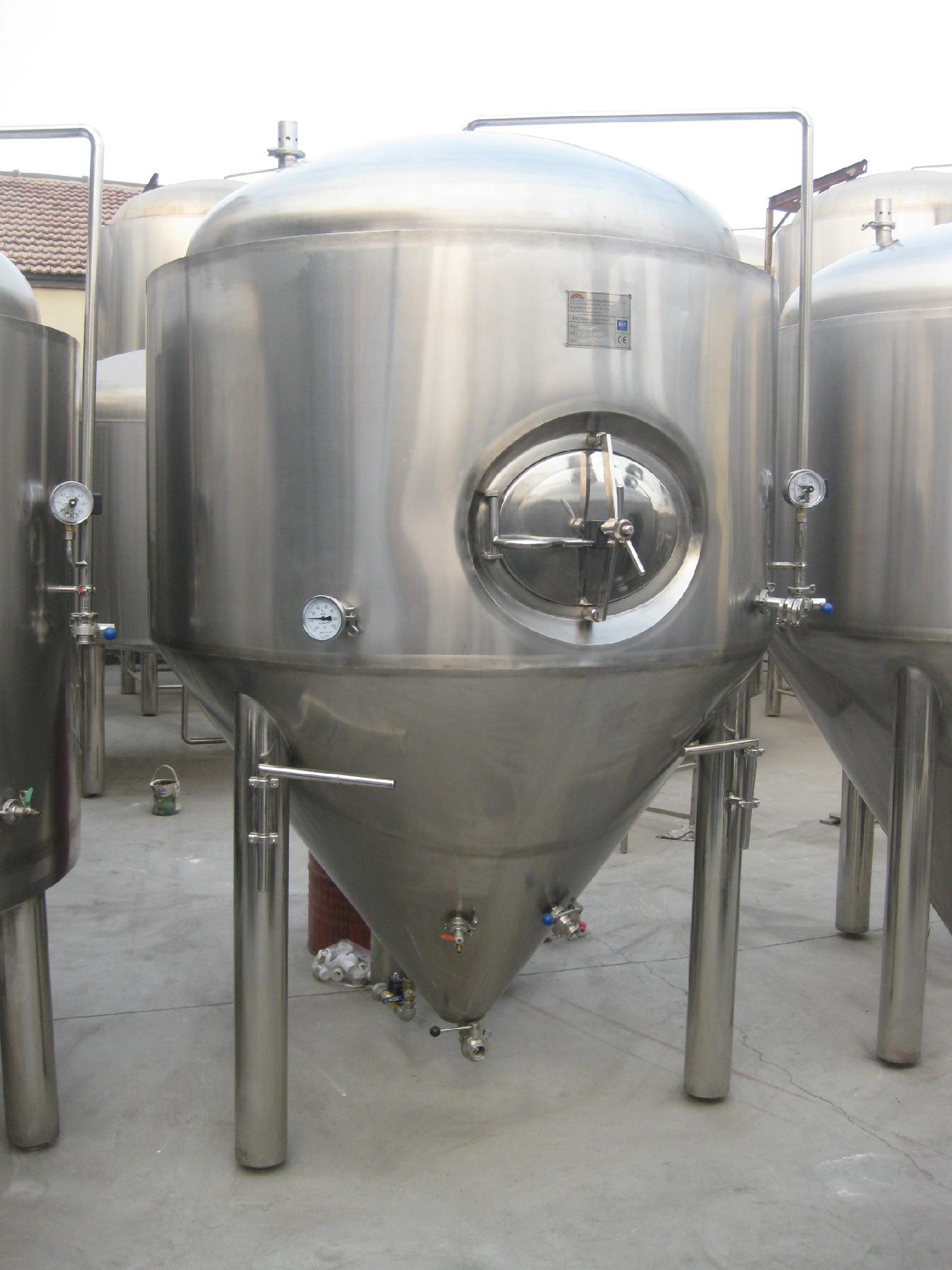

Fermentation system:

1) - Inner wall stainless steel 304, 3mm;

      surface wall stainless steel 304, 1.5mm

 2) Dome top, conical bottom,

      Top manway

3) Insulation: polyurethane 100mm

4) Glycol cooling jackets on both cylinder and cone

5) - Inside 360 degree rotating CIP washing ball;

     - CIP arm

     - Pressure gauge

     - safety&vacuum va e on top

      - sample va e

     - rotating racking arm

     - thermometer

     -carbonation stone (optional)

     - dry hops port (optional)

 6) Testing pressure: 3 bar

      working pressure: 1.5-2 bar

Sample:

Details:

For Your Reference:

 1. We have the capacity of 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 5000L, 8000L...( 1bbl,       2bbl, 5bbl, 10bbl....) per patch for your reference.

      It can be customized, such as the capacity, material, voltage(like 380v, 50Hz, 3phases),    heating source, etc.

 2. The brewer can also brew draft beer, pale beer, brown beer, stout beer etc,

      to meet different taste of customers.

 OPTIONAL:

 Beer bottling line: bottle washing machine, filling machine, capping machine,

 pasteurization tank, labelling machine.

 Kegs washer and filler.

 Beer kegs(10L,20L,30L,50L...),  beer tower.

 Steam boiler.



All the necessary spare parts:





Payment Terms︰ TT/LC
