10bbl Industrial beer brewery equipment/turnkey brewing plant

Model No.︰

-

Brand Name︰

RAINBOW

Country of Origin︰

China

Unit Price︰

US $ 65000 / pc

Minimum Order︰

1 pc

Share on:

Product Description

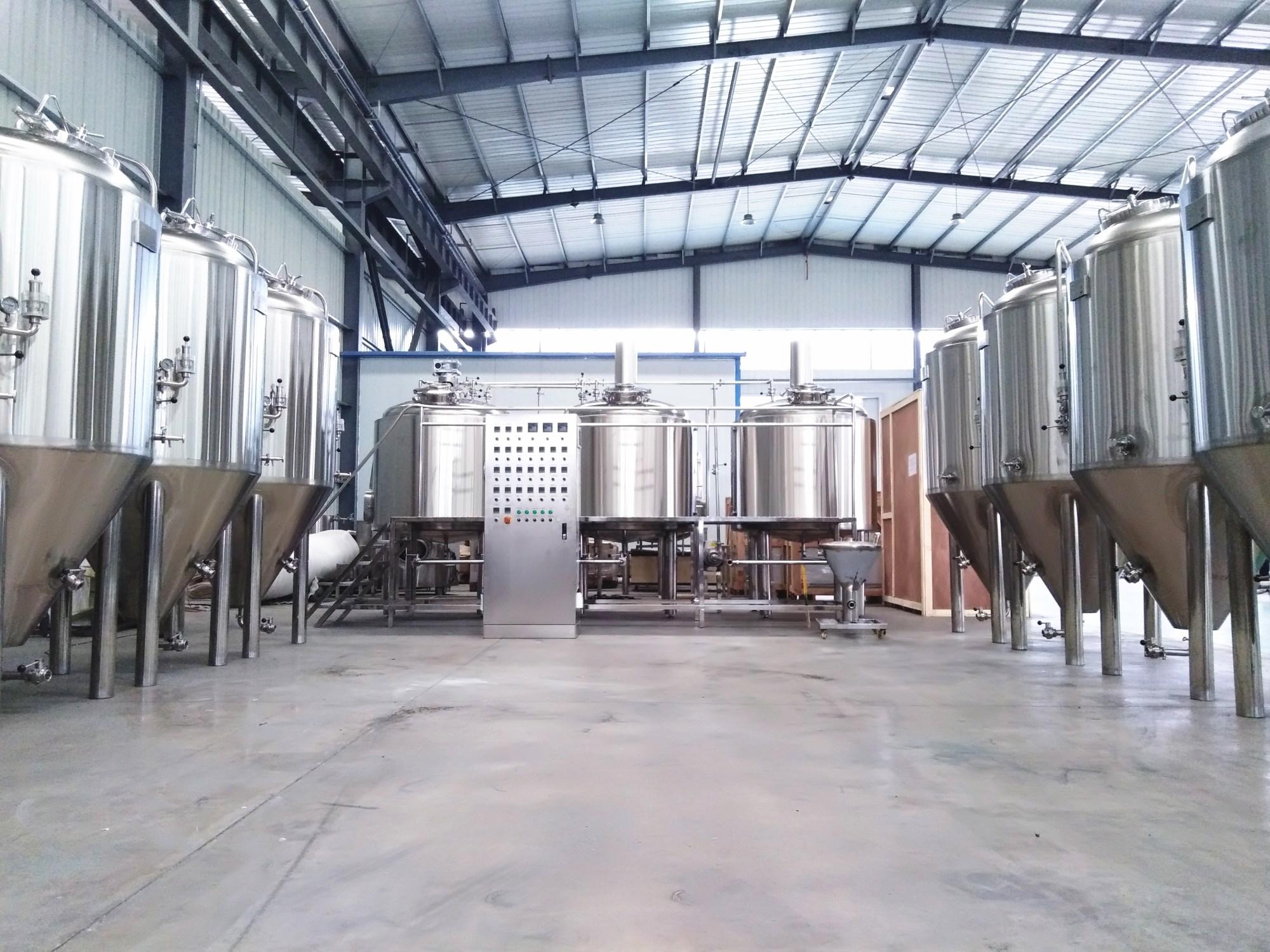

10bbl Beer Brewing equipment

MAIN CONFIGURATIONS:

This is the configuration of brewhouse system (mash tun/lautering tun, brew kettle/whirlpool, hot liquor tank), please check the details in the following chart.

Optional:       1- mash tun, lauter tun, brew kettle/whirlpool, hot liquor tank

                     2- mash/brew kettle, lauter tun, whirlpool, hot liquor tank

                    3- mash/brew kettle, lauter tun/whirlpool, hot liquor tank

                   4- mash tun, lauter tun, brew kettle, whirlpool, hot liquor tank



Items

Equipment

Specification

Quantity

(PCS)

Malt miller

Malt miller

300-500kg/hour

1

Brewhouse

Mash/lautering tun

10bbl

1

Brew kettle/whirlpool

10bbl

1

Hot liquor tank

10bbl

1

Plate heat exchanger

12 m2

1

Wort pump

m³/h

1

Hot liquor pump

m³/h

1

Working platform



1

Fermentation

Fermenter

10bbl/20bbl

6

Aeration&yeast adding tank

30L

1

Cooling unit

Glycol water tank

2000L/3500L

1

Chiller

8hp

1/2

Glycol water pump

m³/h

1

CIP unit

Alkali tank

100L

1

Sterilization tank

100L

1

Pump

m³/h

1

Control unit

PID control /SIEMENS PLC touch screen control

1

Spare parts

Include all necessary spare parts such as pipes, valves, gauges and clamps…etc

    Material: stainless steel 304/316/copper



Main specs of brewhouse and fermentation:

Brewhouse system:   (Heating methodelectric, steam or direct gas fired heating)

1) - Inner wall SUS304, 3mm;

    - Surface wall SUS304/red copper, 2mm

2)  -Dome top, top manway with glass

     -Side manway, cone bottom 160 degree

3) - Insulation: polyurethane/rockwool 100mm;

     -with inside 360° CIP washing ball

     -agitator

     -removable false bottom

    - sparging arm, sight glass

     -Tangential inlet for whirlpool

     -Thermowell for temperature sensor and thermometer....

     -Grist case, hydrator(optional)

     -Level tube(optional)



Fermentation system:

 1) - Interior wall stainless steel 304, 3mm;

     - Exterior wall stainless steel 304, 2mm

 2)  -Top mounted manway, conical bottom

 3)  -Insulation: polyurethane 100mm

 4)  -Glycol cooling jackets on both cylinder and cone

 5) - Inside 360 degree rotating CIP washing ball;

      -CIP arm

     - safety&vacuum valve on top

     - bung device

      -sample valve

     - rotating racking arm

     - thermometer

      -carbonation stone(optional)

      -Level tube(optional)

      -dry hops port

  6) -100% TIG welding with pure argon gas shield

      - Interior Finish: Mirror polishing to 0.4~0.6μm without dead corner

      -Testing pressure: 3 bar

      -working pressure: 1.5-2 bar



OPTIONAL

 Beer bottling machine: bottle filling&capping machine, bottle washing machine

 labelling machine.

 Kegs washer and filler.

 Beer kegs(10L,20L,30L,50L...).

 Steam boiler.



Tips:

1For electric machine parts, we use SIEMENS, SCHNEIDER, DANFOSS, OMRON, ABB, UL standard, etc.

 2. The beer brewing equipments can be customized, such as the capacity, material(SUS304/304L/316), voltage(like 380v, 50Hz, 3phases), heating source(electric, steam or gas fired heating), etc.

 ♦  provide installation, commissioning/testing, personal training.

  ♦ Engineers are available for overseas service



COMPANY PROFILE:

We, Jinan Rainbow Machinery Co., Ltd  are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-20000L per patch (used for home, pub/hotel, factory, etc.) at a very competitive price, with product design, production, sales, and installation support.

We have been exporting beer brewing tanks to many places like USA, Canada, Ecuador, Germany, France, Portugal, Czech Republic, Finland, Norway, Switzerland, Australia, South Africa, Taiwan....etc.
