1000L Micro turnkey beer brewing system

Model No.︰

-

Brand Name︰

RAINBOW

Country of Origin︰

China

Unit Price︰

US $ 53000 / pc

Minimum Order︰

1 pc

Share on:

Product Description

                                            Stainless steel beer brewing equipment

MAIN CONFIGURATIONS:

This brewhouse system includes 3 tanks(mash tun/lautering tun, brew kettle/whirlpool, hot liquor tank), please check the details in the following chart.

Optional configuration:   1- mash/brew kettle, lauter tun/whirlpool

                                       2- mash tun, lauter tun, brew kettle/whirlpool

                                    3- mash/brew kettle, lauter tun, whirlpool

                                  4- mash tun, lauter tun, brew kettle, whirlpool

This is the 1000L brewing system configuration for your reference.

Items

Equipment

Specification

Quantity

(PCS)

Malt miller

Malt miller

300kg/hour

1

Brew house

Mash tun/lautering tun

1000L

1

Brew kettle/whirlpool

1000L

1

Hot liquor tank

1300L

1

Plate heat exchanger

12 m2

1

Pump

3 m³/h

2

Working platform



1

Fermentation

Fermenter

1000L

6

Aeration&yeast adding tank

30L

1

Cooling unit

Glycol water tank

1500L

1

Chiller

8hp

1

Water pump

3 m³/h

1

CIP unit

Alkali tank

100L

1

Sterilization tank

100L

1

Pump

3 m³/h

1

Control unit

Siemens PLC/PID controlling system

1

Filter system

Kieselguhr filter machine

500L/H

1

Bright beer tank

1000L

1

Spare parts

All necessary spare parts such as pipes, valves, gauges and clamps…etc.

Heating source: electric, gas fired or steam heating

Material: stainless steel 304/316 or copper

Warranty: 36 months



Main specs of brewhouse and fermentation:

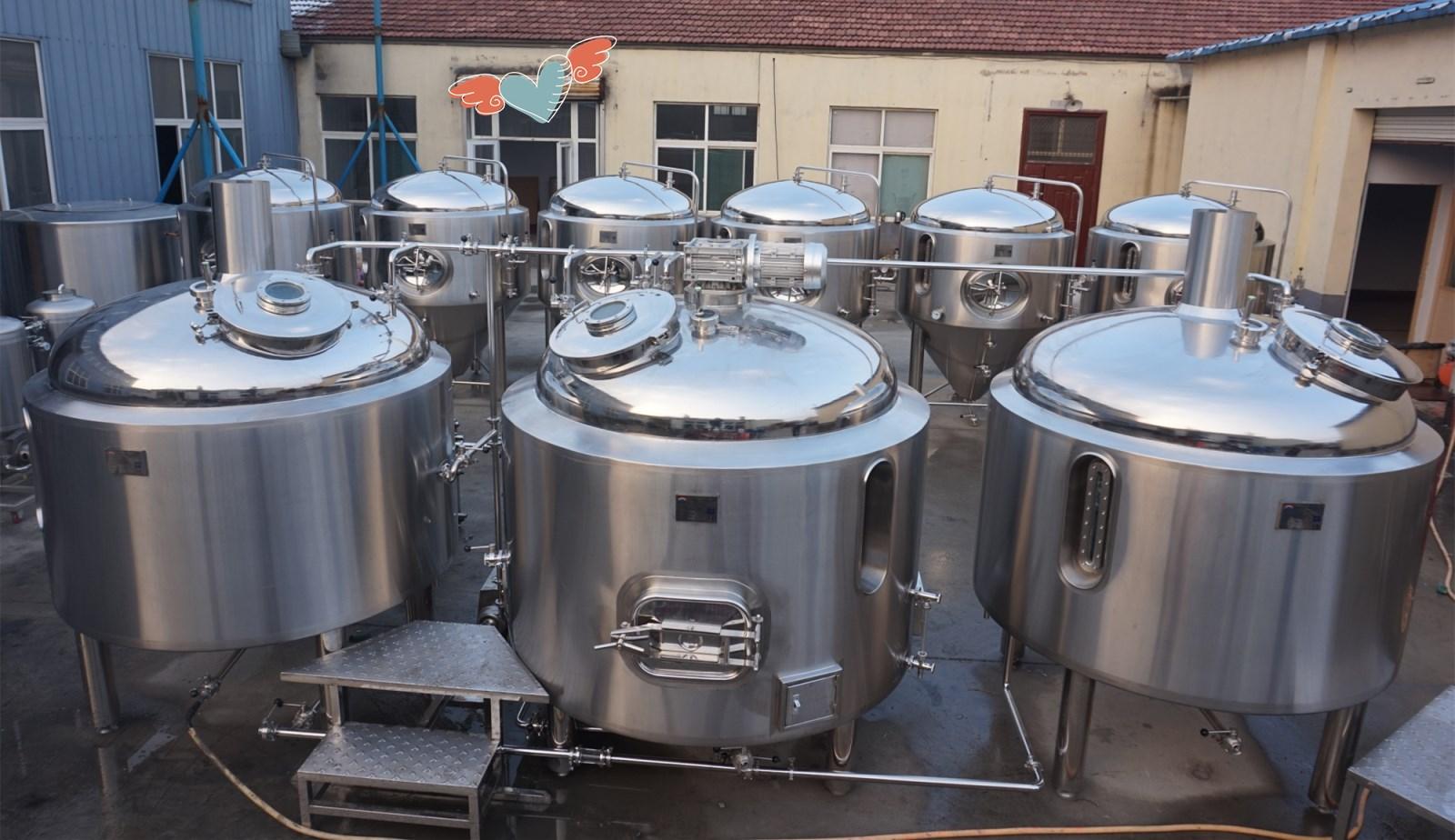

Brewhouse system:

1) - Interior wall stainless steel 304, 3mm;

    - exterior wall stainless steel 304, 2mm

2) -Dome top, top manway with glass

    -Side manway, cone bottom 160 degree

3) - insulation: polyurethane/rockwool 100mm;

    - with inside CIP washing ball

    - agitator

    - removable false bottom

    - sparging arm, sight glass

    -Tangentiainlet for whirlpool

     -Thermowell for temperature sensor and thermometer....

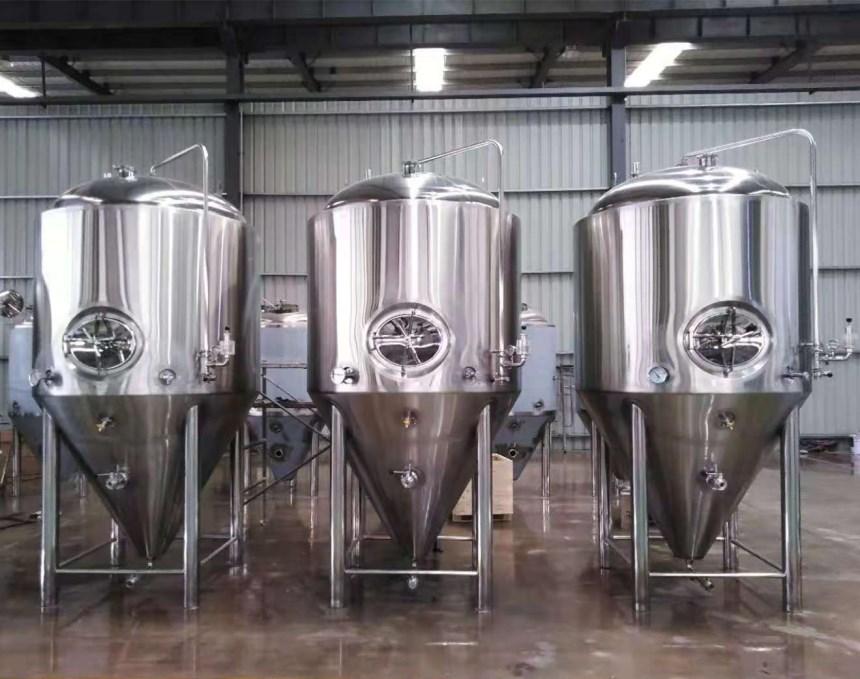

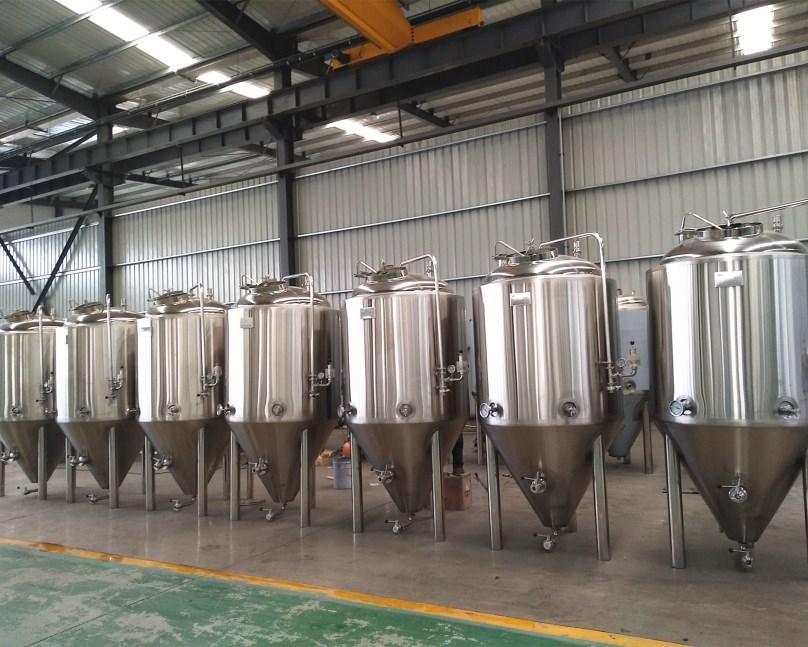

Fermentation system:

1) - Interior wall stainless steel 304, 3mm;

      -exterior wall stainless steel 304, 2mm

2) -Dome top, conical bottom,

    -Top/side mounted manway

3) -Insulation: polyurethane 100mm

4) -Glycol cooling jackets on both cylinder and cone

5) - Inside 360 degree rotating CIP washing ball;

   - CIP arm

   - Bung device

   - safety&vacuum valve on top

   - sample valve

   - rotating racking arm

   - thermometer

   - dry hops port on top

   - carbonation stone (optional)

6) -100% TIG welding with pure argon gas shield

    -Interior Finish: Mirror polishing to 0.4~0.6μm without dead corner

   -Testing pressure: 3 bar

   -working pressure: 1.5-2 bar



Main spare parts:

-Pipe line for brewhouse

-Butterfly valves

-Sight glass

-Measuring cylinder

-Saccharimeter, 0-10&10-20

-Spent grains harrow

-Cooling solenoid valve

-Safety/vacuum valve for fermenters

-Pressure gauge

-Thermometer

-Pipeline for cooling

-Expansion valve for glycol chiller

-Signal wire

-Cable

-Temperaturesensor, PT100



For your information:

1. We can do customized, such as the capacity, material, voltage(like 380v, 50Hz, 3phases), heating method, etc.

2. For electric machine parts, we use SIEMENS, SCHNEIDER, DANFOSS, OMRON, ABB, UL standard, etc. .



OPTIONAL:

 Beer bottling line: bottle washing machine, filling machine, capping machine,

 labelling machine.

 Kegs washer and filler.(one head or double head)

 Beer kegs(10L,20L,30L,50L...). /  USA standard kegs.

 Steam boiler.

 Kieselguhr filter machine.





COMPANY PROFILE:

We, Jinan Rainbow Machinery Co., Ltd are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-20000L per patch (used for home, pub/hotel, factory, etc.) at a very competitive price, with product design, production, sales, and installation support.

We have been exporting beer brewing tanks to many places like USA, Canada, Ecuador, Germany, France, Czech Republic, Finland, Norway, Switzerland, Australia, Taiwan....etc.





Payment Terms︰ TT/LC
