Craft 5bbl beer brewing equipment, brewery system

Model No.︰

RM5bbl

Brand Name︰

RAINBOW

Country of Origin︰

China

Unit Price︰

US $ 40000 / pc

Minimum Order︰

1 pc

Share on:

Product Description

About us:

1. We have the capacity of 100L, 200L, 300L, 500L, 1000L, 1200L, 2000L, 3000L, 5000L, 8000L...( 1bbl, 2bbl, 5bbl, 10bbl....) per patch for your reference.

It can be customized, such as the capacity, material(SUS304/316/red copper), voltage(like 380v, 50Hz, 3phases), heating method(gas fired, electric or steam heating), etc.

2. For electric machine part, we use SIEMENS, SCHNEIDER, DANFOSS, OMRON, ABB, UL standard, etc.

3. Engineers are available for overseas.



MAIN CONFIGURATIONS:

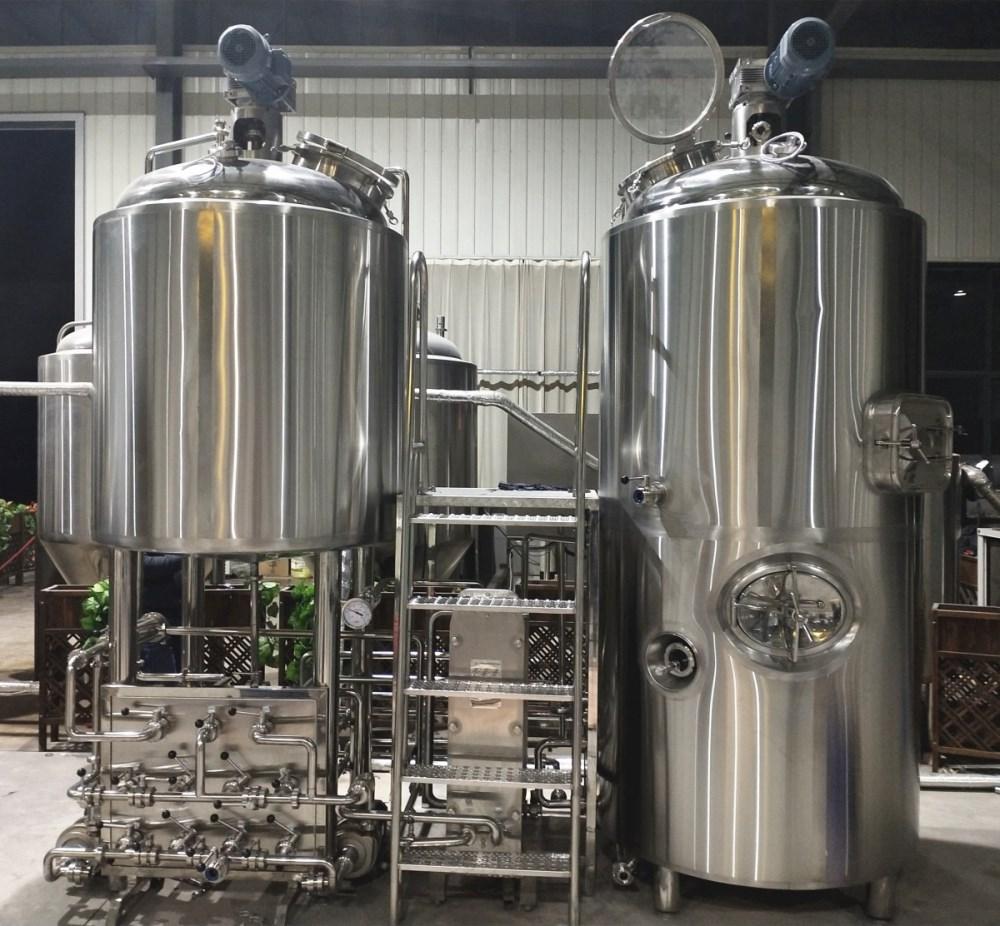

 This brewhouse system includes 3 tanks(mash tun/lautering tun, brew kettle/whirlpool, hot liquor tank), please check the details in the following chart.

This is the configuration of 1000L brewing system for your reference.

Items

Equipment

Specification

Quantity

(PCS)

Malt miller

Malt miller

300kg/h

1

Brew house

Mash/lautering tun

1000L

1

Brew kettle/whirlpool

1000L

1

Hot liquor tank

2000L

1

Plate heat exchanger

10 m2

1

Pump

3 m³/h

2

Working platform



1

Fermentation

Fermenter

1000L

6

Aeration&yeast adding tank

30L

1

Cooling unit

Glycol water tank

1500L

1

Chiller

8hp

1

Glycol pump

3 m³/h

1

CIP unit

Alkali tank

100L

1

Sterilization tank

100L

1

Pump

3 m³/h

1

Control unit

PID control / Siemens PLC controlling system

1

Filter system

(optional)

Kieselguhr filter machine

500L/H

1

Bright beer tank

1000L

1

Spare parts

All necessary spare parts such as pipes, va es, gauges and clamps…etc.

Heating source: electric, steam or gas fired heating

Material: stainless steel 304/316 or copper

Warranty: 36 months





Main specifications of brewhouse and fermentation:

Brewhouse system:

Optional combination of brewhouse:

       1-mash/lauter tun, brew kettle/whirlpool, hot liquor tank

      2- mash/brew kettle, lauter tun/whirlpool, hot liquor tank

      3- mash/brew kettle, lauter tun, whirlpool, hot liquor tank

      4- mash tun, lauter tun, brew kettle/whirlpool, hot liquor tank

      5- mash tun, lauter tun, brew kettle, whirlpool, hot liquor tank



1) - Inner wall stainless steel 304, 3mm;

    - surface wall stainless steel 304, 2mm

2) -Top manway with glass

     -Side manway for spent grains

3) - Insulation: polyurethane/rockwool 100mm;

     -inside CIP washing ball

     -agitator

     -removable false bottom

     -sparging arm

     -Tangential inlet for whirlpool

     ...............

     -Wort grant, auger, grain case, hydrator, level tube (optional)

 brewhouse.

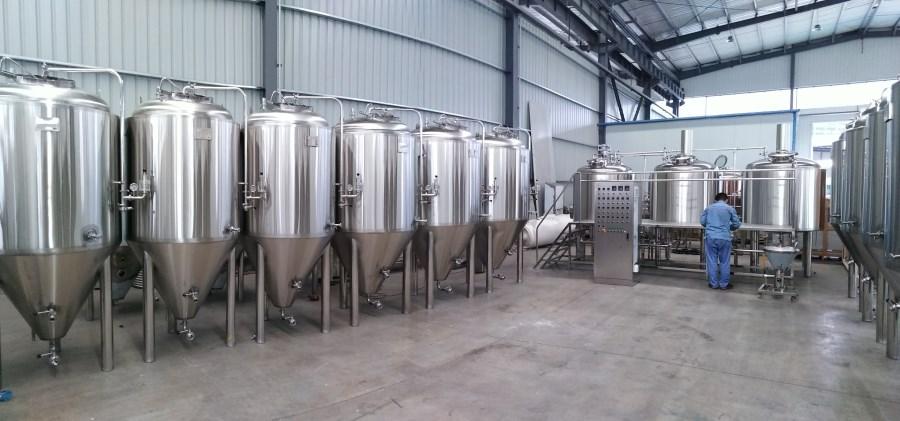

Fermentation system:

 1) - Inner wall stainless steel 304, 3mm;

     -surface wall stainless steel 304, 2mm

 2) - Dome top, conical bottom,

       -Top/side mounted manway

3) - Insulation: polyurethane 100mm

4) - Glycol cooling jackets on both cylinder and cone

 5) - Inside 360 degree rotating CIP washing ball;

     - CIP arm

     - Bung apparatus

     - safety&vacuum va e on top

       - sample va e

       - rotating racking arm

        -carbonation stone, level tube(optional)

       - dry hops port

 6)  -Testing pressure: 3 bar

      -working pressure: 2 bar



OPTIONAL

- Beer bottling machine: bottle washing machine, filling&capping machine, labelling machine.

 -Kegs washer and filler.

 -Beer kegs(Euro/USA standards).

 -Steam boiler.

 -Beer filter

 -Hop gun



COMPANY PROFILE:

We, Jinan Rainbow Machinery Co., Ltd  are a professional manufacturer of good quality beer brewing system, ranging from 100L-20000L per patch (used for home, pub/hotel/restaurant, factory, etc.) at a competitive price, with product design, production, sales, and installation support.

We have been exporting beer brewing tanks to many places like USA, Canada, Germany, France, Czech Republic, Finland, Norway, Switzerland, Belgium, Portugal, South Africa, Australia, Argentina, Taiwan....etc.






Payment Terms︰ T/T, L/C, Western Union
