Brewpub 1000L beer brewing system, beer equipment

Model No.︰

RM1000L

Brand Name︰

RAINBOW

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

1 pc

Share on:

Product Description

  Brewing Beer Equipment



MAIN CONFIGURATIONS:

 This brewhouse system includes 3 tanks(mash tun/lautering tun, brew kettle/whirlpool, hot liquor tank), please check the details in the following chart.

This is the configuration of 1000L brewing system for your reference.

Items

Equipment

Specification

Quantity

(PCS)

Malt miller

Malt miller

300kg/h

1

Brew house

Mash/lautering tun

1000L

1

Brew kettle/whirlpool

1000L

1

Hot liquor tank

1000L

1

Plate heat exchanger

10 m2

1

Pump

3 m³/h

2

Oxygenator



1

Working platform



1

Fermentation

Fermenter

1000L

6

Yeast adding tank

30L

1

Cooling unit

Glycol water tank

1500L

1

Cooling compressor

8hp

1

Water pump

3 m³/h

1

CIP unit

Alkali tank

100L

1

Sterilization tank

100L

1

Pump

3 m³/h

1

Control unit

Siemens PLC controlling system/PID control

1

Filter system

(optional)

Kieselguhr filter machine

500L/H

1

Bright beer tank

1000L

1

Spare parts

All necessary spare parts such as pipes, valves, gauges and clamps…etc.

Heating source: electric, steam or gas fired heating

Material: stainless steel 304/316 or copper

Warranty: 36 months





Main specifications of brewhouse and fermentation:

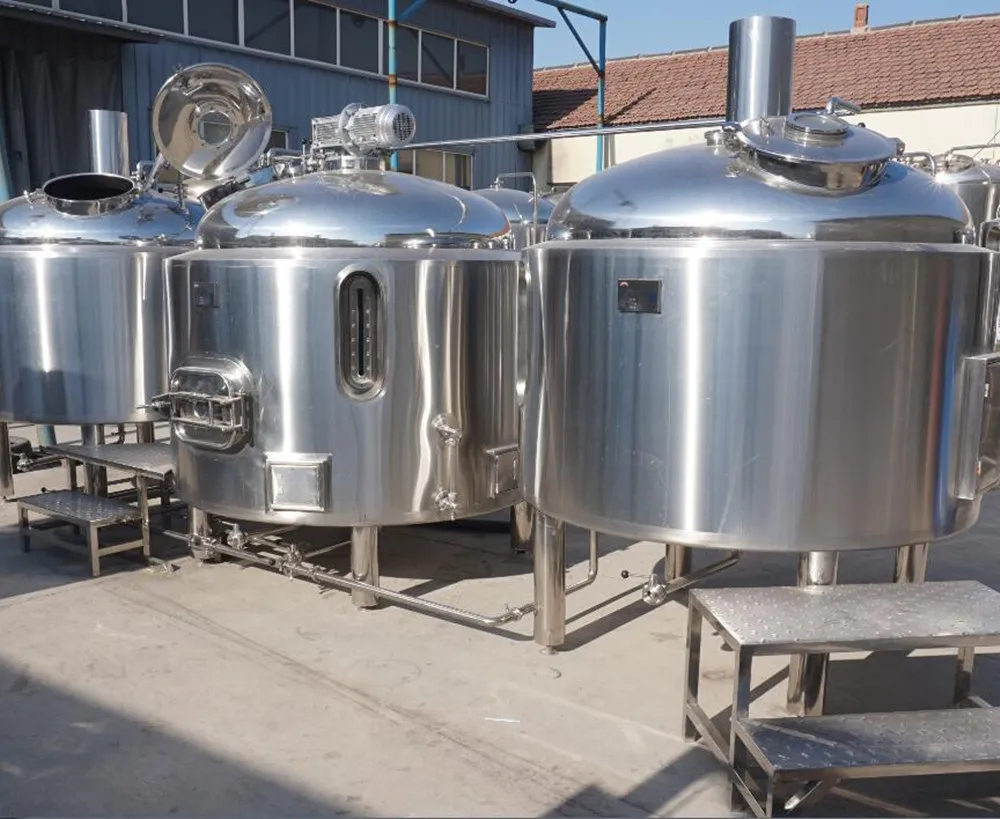

Brewhouse system:

Optional combination of brewhouse:

      1- mash/brew kettle, lauter tun/whirlpool, hot liquor tank

      2- mash/brew kettle, lauter tun, whirlpool, hot liquor tank

     3- mash tun, lauter tun, brew kettle/whirlpool, hot liquor tank

    4- mash tun, lauter tun, brew kettle, whirlpool, hot liquor tank



1) - Inner wall stainless steel 304, 3mm;

    - surface wall stainless steel 304, 2mm

2) -Dome top, top manway with glass

     -Side manway, cone bottom 160 degree

3) - Insulation: polyurethane/rockwool 100mm;

     -inside CIP washing ball

     -agitator

     -removable false bottom

    - sparging arm, sight glass

      -Tangential inlet for whirlpool

      -Thermowell for temperature sensor and thermometer....

     -Wort grant, auger, grain case, hydrator (optional)

 brewhouse.

Fermentation system:

 1) - Inner wall stainless steel 304, 3mm;

       - surface wall stainless steel 304, 2mm

 2) - Dome top, conical bottom,

       -Top/side mounted manway

3) - Insulation: polyurethane 100mm

4) - Glycol cooling jackets on both cylinder and cone

 5) - Inside 360 degree rotating CIP washing ball;

       - CIP arm

     - Pressure gauge

     - safety&vacuum valve on top

       - sample valve

       - rotating racking arm

        - thermometer

        -carbonation stone, level indicator(optional)

       - dry hops port

 6)  -Testing pressure: 3 bar

      -working pressure: 1.5-2 bar

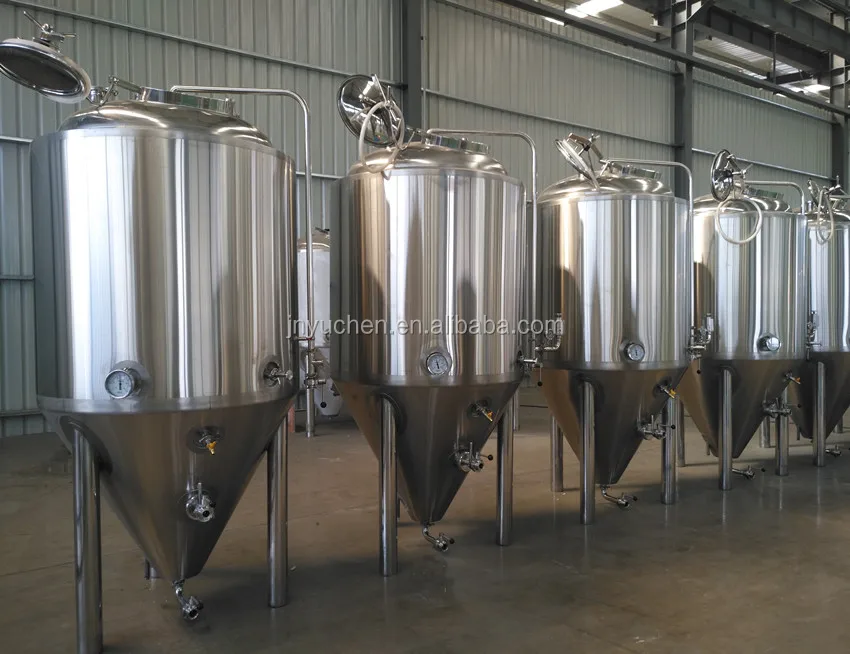

 500L fermenter



OPTIONAL:

- Beer bottling machine: bottle washing machine, filling&capping machine, labelling machine.

 -Kegs washer and filler.

 -Beer kegs(10L,20L,30L,50L...), USA standard kegs.

 -Steam boiler.



COMPANY PROFILE:

We, Jinan Rainbow Machinery Co., Ltd  are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-20000L per patch (used for home, pub/hotel/restaurant, factory, etc.) at a competitive price, with product design, production, sales, and installation support.



We have been exporting beer brewing tanks to many places like USA, Canada, Ecuador, Germany, France, Czech Republic, Finland, Norway, Switzerland, Australia, Taiwan....etc.





1500



Payment Terms︰ T/T, L/C, Western Union

Product Image
