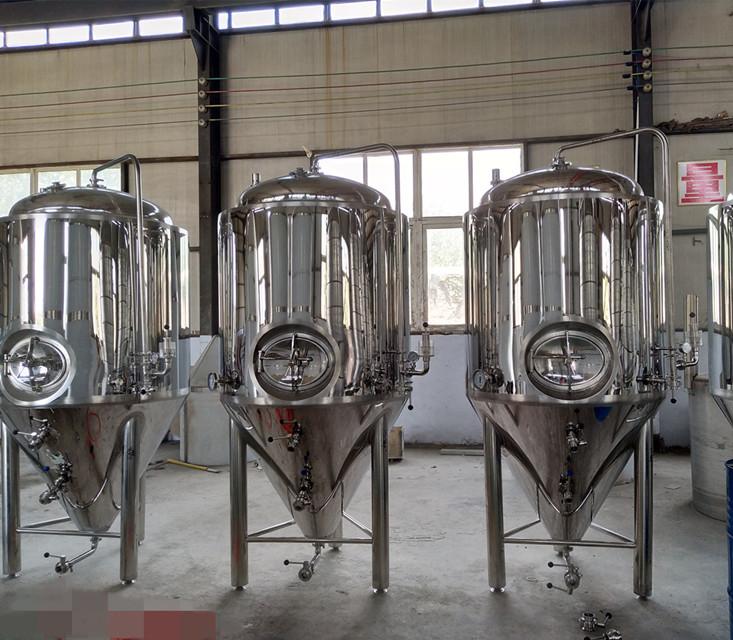

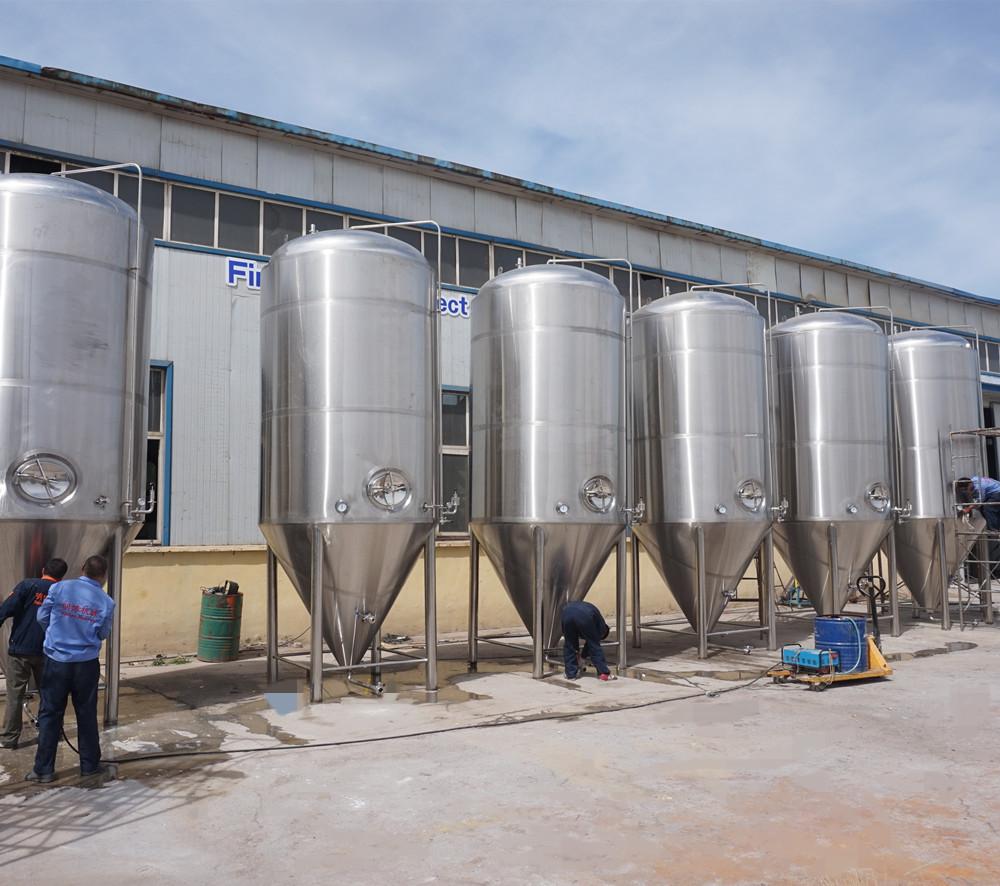

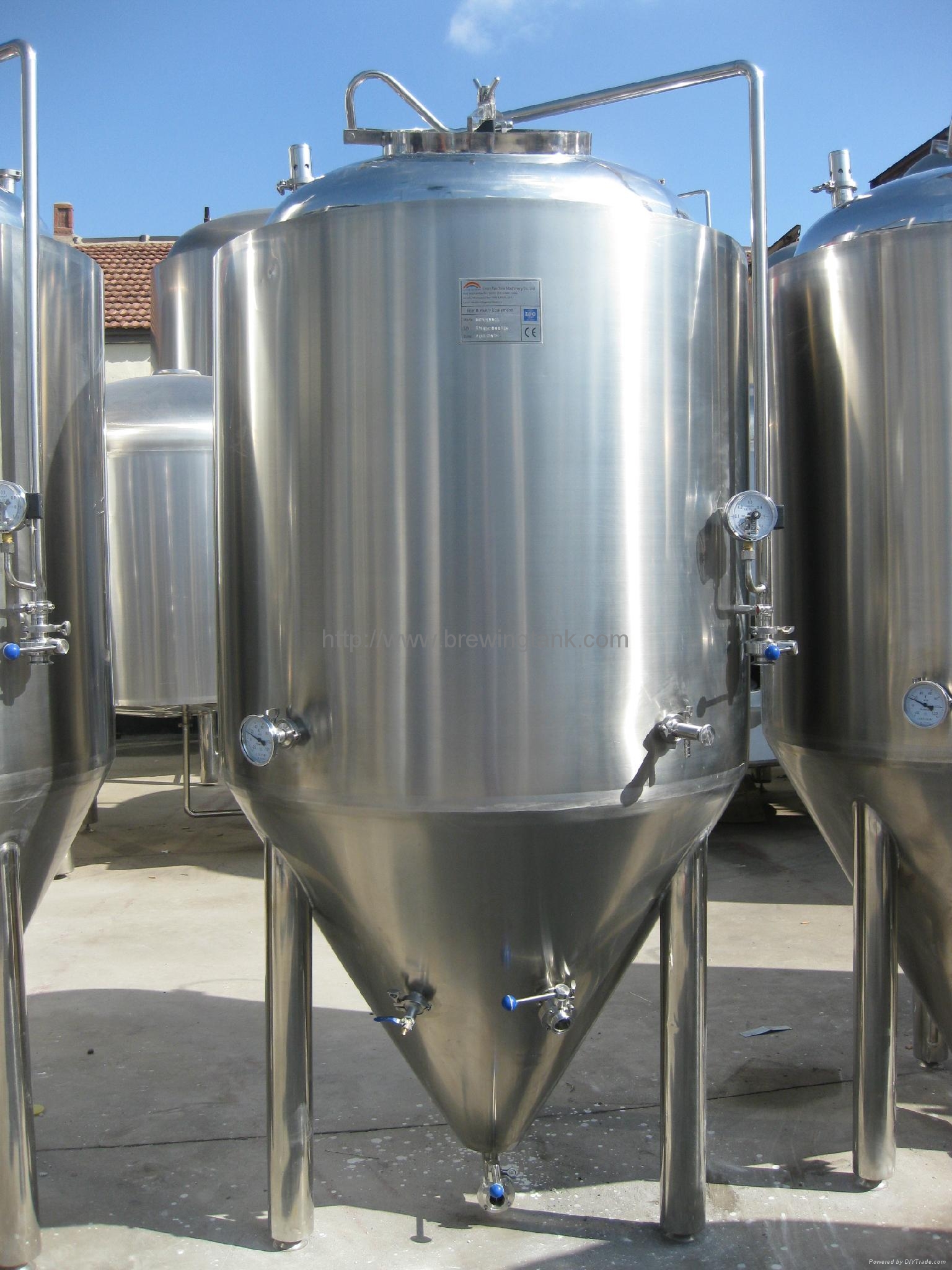

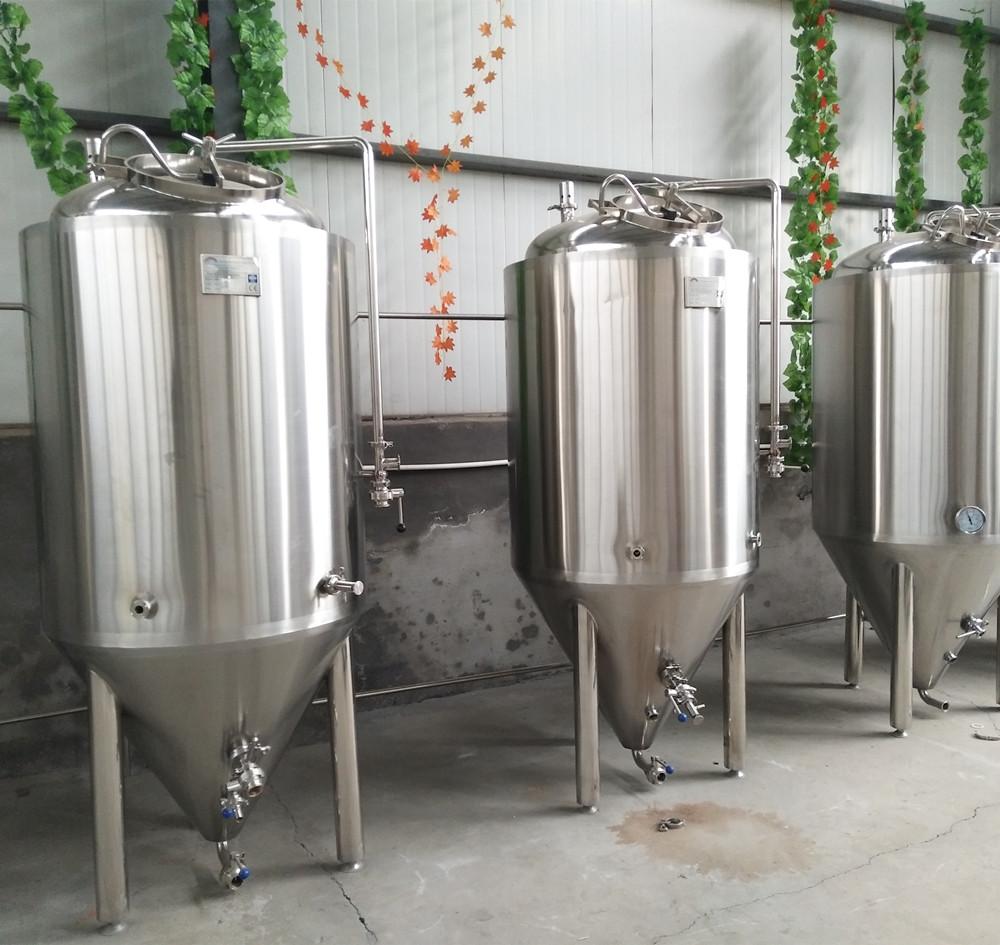

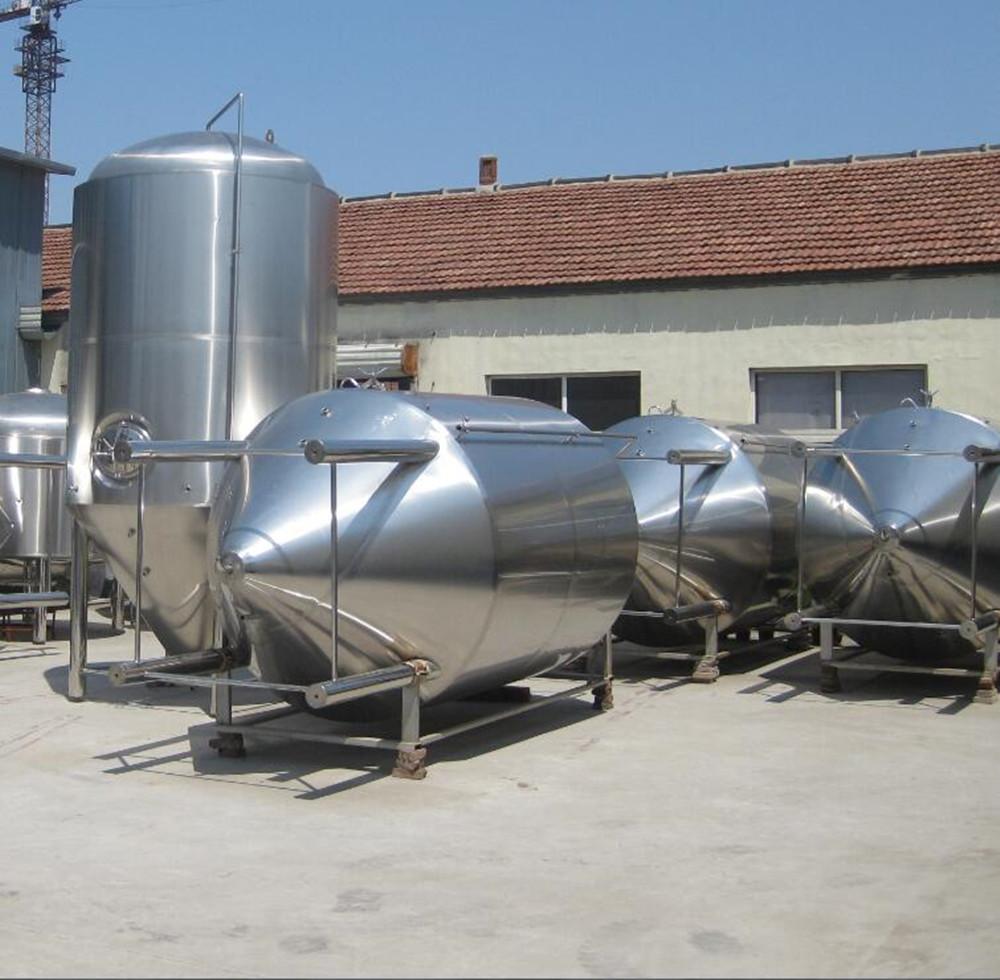

Inside wall,SUS 304, 3mm
Outside wall, SUS 304, 2mm
-Insulation: polyurethane 100mm
-100% TIG welding with pure argon gas shield
-Cone bottom, 60-72 degree
-Cooling jackets on both cylinder and cone, SUS304, 1.5mm
-Interior Finish: Mirror polishing to 0.4~0.6μm without dead corner
-Dry hopping port on top
-Top/side mounted manway
-Safety&vacuum valve on top
-Sample valve on side
-Test Pressure:0.3 Mpa,Working pressure 0.2Mpa.
-Rotating racking arm on cone with butterfly valve
-Discharge arm with butterflyvalve
-CIP arm with 360° coverage CIP spraying ball
-Thermowell with high accuracy temperaturesensor: PT100
Capacity scope: 100L to 20000L, can be customized
complete beer brewing system, include malt miller, brewhouse system, fermenting system, cooling system, CIP system, controlling system, filter system.
Beer bottling machines.
Kegs washer and filler.
