Company Profile:

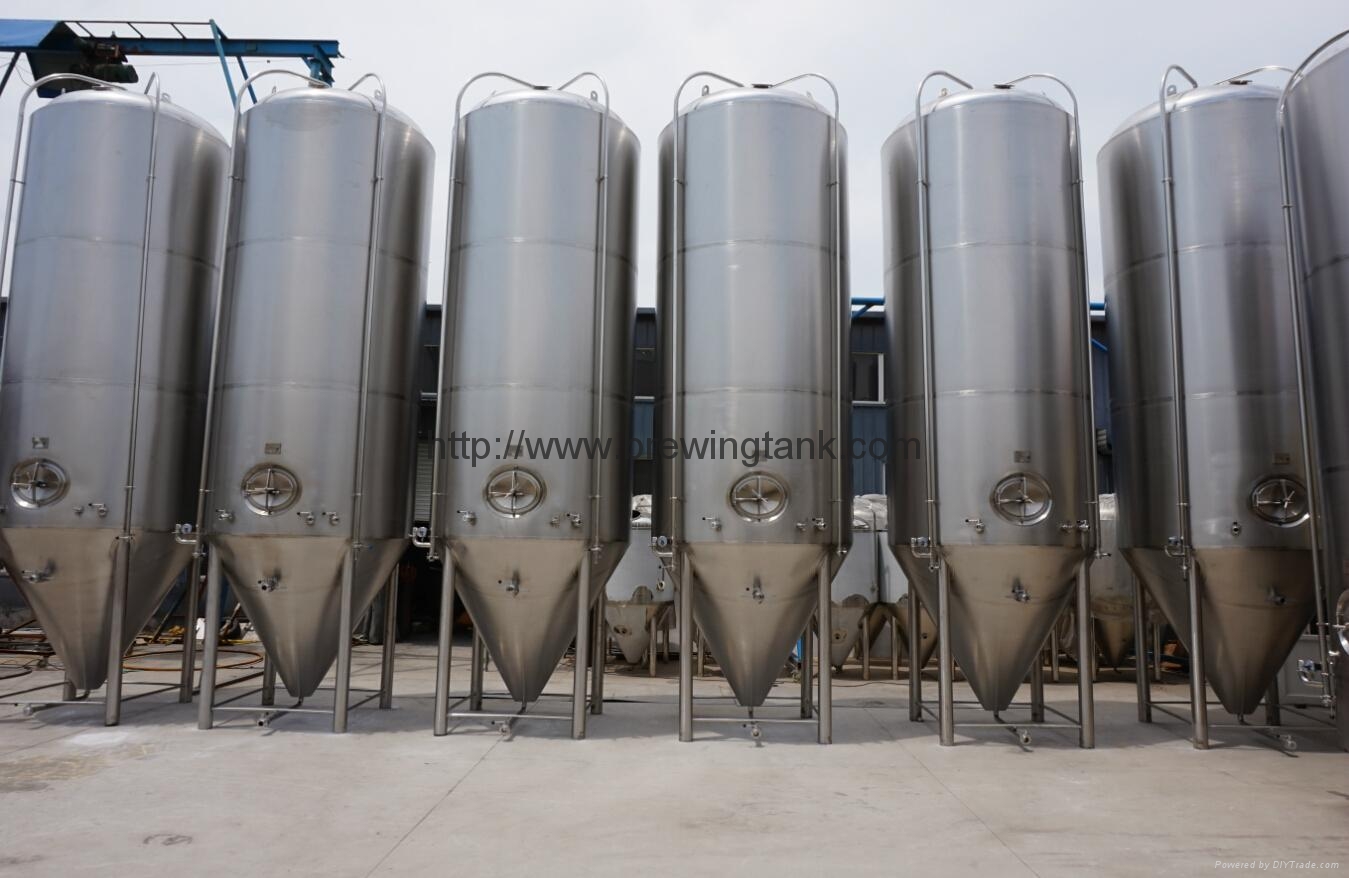

We, Jinan Rainbow Machinery Co., Ltd are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-10000L per patch (used for home, pub/hotel, factory, etc.) at a very competitive price, with product design, production, sales, and installation support.
We have been exporting beer brewing tanks to many places like USA, Canada, Ecuador, Germany, France, Czech Republic, Finland, Norway, Switzerland, Australia, Taiwan....etc.
FEATURES:
-Material:
Inside wall,SUS 304, 3mm
Outside wall, SUS 304, 2mm
-Insulation: polyurethane 100mm
-100% TIG welding with pure argon gas shield
-Cone bottom, 60-72 degree
-Cooling jackets on both cylinder and cone, SUS304, 1.5mm
-Interior Finish: Mirror polishing to 0.4~0.6μm without dead corner
-Dry hopping port on top
-Top/side manway
-Carbonation stone(optional)
-Safety&vacuum valve on top
-Sample valve on side
-Test Pressure:0.3 Mpa,Working pressure 0.2Mpa.
-Rotating racking arm on cone with butterfly valve
-Discharge arm with butterflyvalve
-CIP arm with 360° coverage CIP spraying ball
-Thermowell with high accuracy temperaturesensor: PT100
Optional:
Capacity scope: 100L to 12000L per patch, can be customized
complete beer brewing system, include malt miller, brewhouse system, fermenting system, cooling system, CIP system, controlling system, filter system.
Beer bottling machines.
Kegs washer and filler.
