500L fermentation tank for sale / beer conical fermenter

Model No.︰

FV500

Brand Name︰

RAINBOW

Country of Origin︰

China

Unit Price︰

US $ 2800 / pc

Minimum Order︰

1 pc

Share on:

Product Description

                            500L Fermentation Tank for Sale / Beer Conical Fermenter



Specification of our 500L beer fermentation tank:

NO

Equipment

Specification

Quantity

Fermentation system

Fermentation tank

500 L

?



-Dimension: 1000*2300mm

-Material:

Inside wall, SUS 304, 3mm Outside wall, SUS 304, 2mm

Insulation, PU, 100mm

-Dome top with dry hop port

-Top manway

-Cone bottom, 60 degree

-Cooling jackets on both cylinder and cone

-Inside 360 rotating CIP ball

-Thermowell, 8mm

-Temperature sensor, Model: PT100

-Bung apparatus

-Safety&vacuum valve

-Inside polishing 0.4-0.6 micron

-Working pressure: 0.15-0.2Mpa

-Testing pressure: 0.3Mpa

-Wort piping and butterfly valves, ø32mm

-Drainage piping and butterfly valve, ø38mm

-3 legs with adjustable bolts



1-Various capacities: 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 5000L, 8000L..



2-Thickness of stainless board and PU insulation material can be customized, our standard material is inner wall 3mm sus304, outer wall 2mm sus304, insulation 100mm PU



3-Besides fermenting equipment, we can also provide mash system, cooling system, cip system, filter system, control system, bottling filling and capping machine, keg filling and washing machine, steam boiler...





Complete system of 500L for your reference:

  •

    Items

    Equipment

    Specification

    Quantity

    Malt miller

    Malt miller

    300kg/hour

    1

    Brewhouse system

    Mash tun&lautering tun

    500L

    1

    Brew kettle&whirlpool

    500L

    1

    Hot liquor tank

    1000L

    1

    Plate heat exchanger

    5m2

    1

    Pump

    3t/h

    2

    Working platform



    1

    Fermentation system

    Fermenter

    500L

    6

    Aeration&yeast adding tank

    30L

    1

    Cooling system

    Glycol water tank

    1000L

    1

    Chiller

    5hp

    1

    Pump

    3t/h

    1

    CIP washing system

    Alkali tank

    100L

    1

    Sterilization tank

    100L

    1

    Pump

    3t/h

    1

    Control system

    PID controling system

    1

    Spare parts

    All the necessary spare parts







Payment Terms︰ T/T, L/C, Western Union

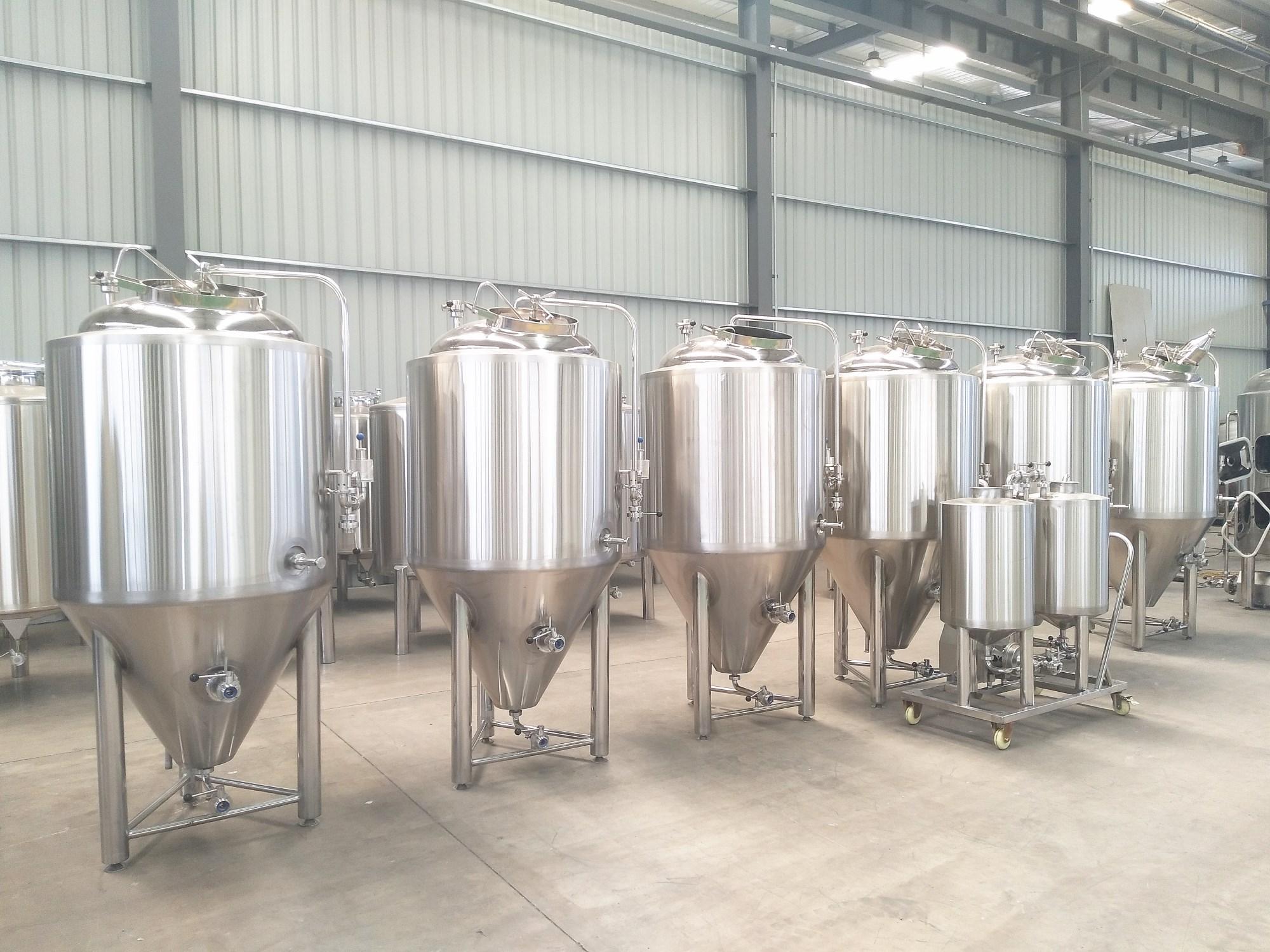

Product Image
