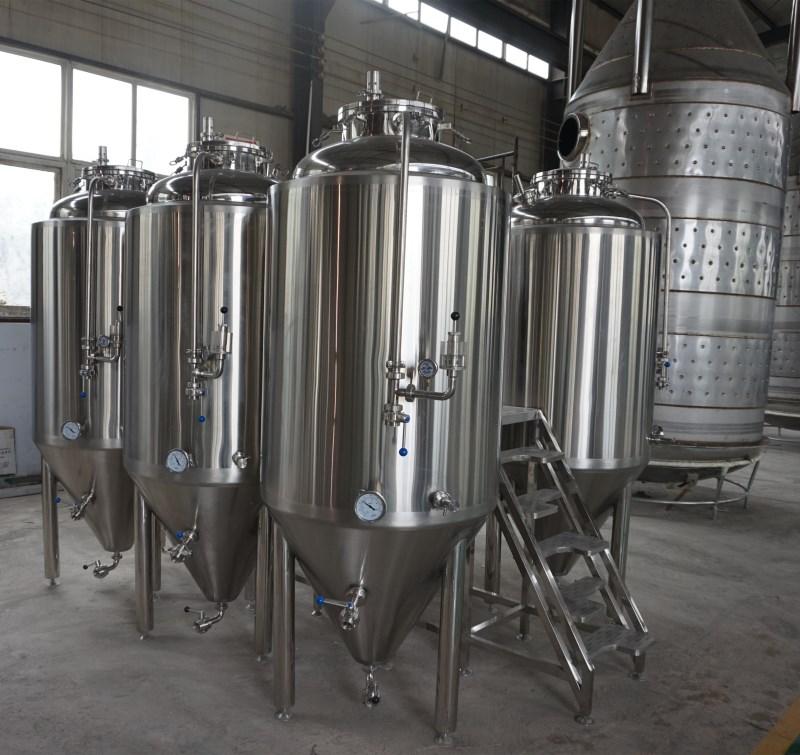

1200L beer brewing fermenter / conical fermenter tank

Model No.︰

FV1200

Brand Name︰

RAINBOW

Country of Origin︰

China

Unit Price︰

US $ 3300 / pc

Minimum Order︰

1 pc

Share on:

Product Description

                             1200L Beer Brewing Fermenter / Conical Fermenter Tank



INTRODUCTION

Question:



1. We have capacities of 100 liter to 10000 liter, which capacity do you prefer, 1200L?



2. How many tank do you need?



3. Do you need any other part of the brewery, such as mashing system, cip system, steam boiler, cooling system, control system, bottling system, kegging system?





NO

Equipment

Specification

Quantity

Fermentation system

Fermentation tank

1200 L

?



-Dimension: according to the ceiling height

-Material:



Inside wall, SUS 304, 3mm Outside wall, SUS 304, 1.5mm Cooling jackets, SUS 304, 1.5mm Insulation, PU, 100mm



-Dome top with dry hop port



-Top manway



-Cone bottom, 60 degree



-Cooling jackets on both cylinder and cone



-Inside 360 rotating CIP ball



-Thermowell, 8mm



-Temperature sensor, Model: PT100



-Pressure gauge



-Safety valve



-Inside polishing 0.4-0.6 micron



-Working pressure: 0.15Mpa



-Testing pressure: 0.3Mpa



-Wort piping and butterfly valves, ø32mm



-Drainage piping and butterfly valve, ø38mm



-3 legs with adjustable bolts



Spare parts

All the necessary hoses, pipes, valves, clamps/gaskets, thermometer and gauges…etc

Price Term:  Price based on FOB Qingdao, Port, China

Delivery Time: Up to the capacity and quantity you need. (FOB China Port Time)

Payment Term: 30%T/T in Advance, Balance before the machine ready for shipment

Package: standard export Package suitable for long marine transport



OUR CLIENTS



Germany, Czech Republic, USA, Canada, Russia, Sweden, Paraguay, Singapore, Australia, Finland...



CHARACTERISTICS



1-For all kinds of beer's fermentation(ale and lager)



2-Various capacities: 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 5000L, 8000L..



3-Thickness of stainless board and PU insulation material can be customized, our standard material is inner wall 3mm sus304, outer wall 1.5mm sus304, insulation 100mm PU



4-Technical support can be provided by our engineer, if you need, they can come to your country to help you install the equipment and brew beer.



5-Besides fermenting equipment, we can also provide mash system, cooling system, cip system, filter system, control system, bottling filling and capping machine, keg filling and washing machine, steam boiler...

SPECIFICATION OF OUR COMPLETE 1200L BREWERY



Items

Equipment

Specification

Quantity

Malt miller

Malt miller

200kg/hour

1

Brewhouse system

Mash tun&lautering tun

1200L

1

Brew kettle&whirlpool

1200L

1

Hot liquid tank

1200L

1

Plate heat exchanger

12m2

1

Wort oxygenator



1

Working platform



1

Pump

3t/h

2

Fermentation system

Fermenter

1200L

6

Yeast adding tank

50L

1

Cooling system

Glycol water tank

2000L

1

Cooling compressor

5hp

2

Pump

3t/h

1

CIP washing system

Alkali tank

100L

1

Sterilization tank

100L

1

Pump

3t/h

1

Control system

Simens PLC control box



1

Spare parts

All spare parts

Propsoal1



IMG_6745

IMG_5314

POLISHING AND WELDING

polishing and welding

PACKAGE IMAGE

8

 CERTIFICATE

CERTIFICATE





Payment Terms︰ T/T, L/C, Western Union

Product Image
