7bbl Micro brewery for pub, full brewing system

Model No.︰

RM820L

Brand Name︰

RAINBOW

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

1 pc

Share on:

Product Description

Company Profile:

We, Jinan Rainbow Machinery Co., Ltd  are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-20000L per patch (used for home, pub/hotel, factory, etc.) at a very competitive price, with product design, production, sales, and installation support.



MAIN CONFIGURATIONS:

 This brewhouse system includes 3 tanks(mash tun/lautering tun, brew kettle/whirlpool, hot liquor tank), please check the details in the following chart.

Optional:       1- mash/brew kettle, lauter tun/whirlpool

                      2- mash/brew kettle, lauter tun, whirlpool

                     3- mash tun, lauter tun, brew kettle/whirlpool

                    4- mash tun, lauter tun, brew kettle, whirlpool

 This is the 7bbl brewing system configuration for your reference.

Items

Equipment

Specification

Quantity

Malt miller

Malt miller

300kg/hour

1

Brewhouse system

Mash tun&lautering tun

7bbl

1

Brew kettle&whirlpool

7bbl

1

Hot liquor tank

7bbl

1

Plate heat exchanger

8 m2

1

Pump

3m³/h

2

Working platform



1

Fermentation system

Fermenter

7bbl

6

Yeast adding tank

30L

1

Wort oxygenator



 1

Cooling system

Glycol water tank

1500L

1

Chiller

8hp

1

Pump

3m³/h

1

CIP washing system

Alkali tank

100L

1

Sterilization tank

100L

1

Pump

3m³/h

1

Control system

PID/SIEMENS PLC control box



1

Spare parts

All the necessary spare parts, like pipes, va es, gauges....

Heating source: electricity, baine-marie heating, gas fired or steam

Material: stainless steel 304 or copper

Warranty: 36 months for tanks



Main specifications of brewhouse and fermentation:

Brewhouse system:

1) - interior wall stainless steel 304, 3mm;

    - exterior wall stainless steel 304, 2mm

2) -Dome top, top manway with glass

    -Side manway, cone bottom 160 degree

3) - insulation: polyurethane/rockwool 100mm;

     - with inside CIP washing ball

     - agitator

     - removable false bottom

    - sparging arm, sight glass

      -Tangentiainlet for whirlpool

      -Thermowell for temperature sensor and thermometer....

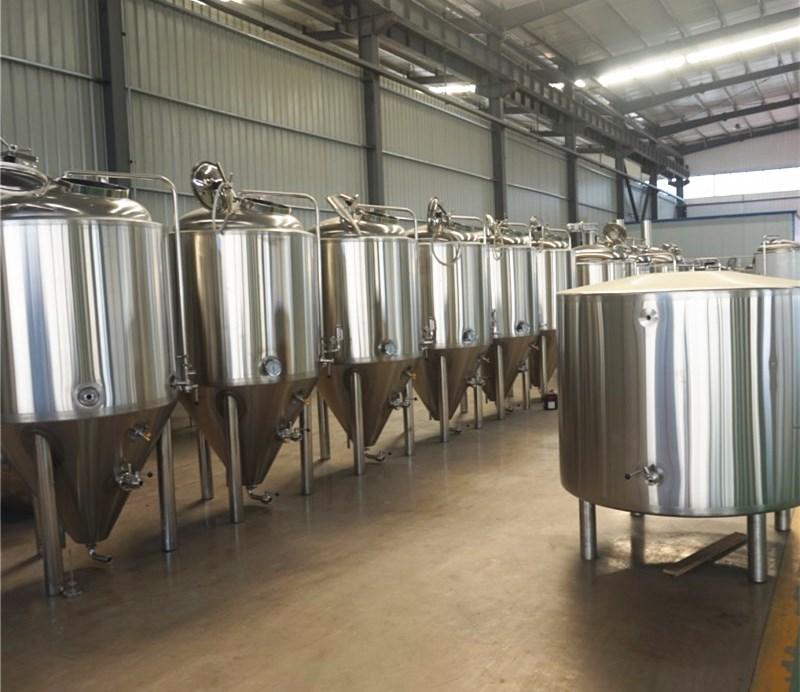

Fermentation system:

1) - Interior wall stainless steel 304, 3mm;

      exterior wall stainless steel 304, 2mm

 2) -Dome top, conical bottom,

    -Top manway

3) -Insulation: PU 100mm

4) -Glycol cooling jackets on both cylinder and cone

5) - Inside 360 degree rotating CIP washing ball;

     - CIP arm

     - Bung apparatus

     - safety&vacuum va e on top

      - sample va e

     - rotating racking arm

     - thermometer

     -carbonation stone (optional)

     - dry hops port on top

 6)  -100% TIG welding with pure argon gas shield

      -Interior Finish:Mirror polishing to 0.4~0.6μm without dead corner

      -Testing pressure: 3 bar

      -working pressure: 1.5-2 bar



All the necessary spare parts like:

-Pipe line for brewhouse

-Butterfly va es

-Sight glass

-Measuring cylinder

-Saccharimeter, 0-10&10-20

-Spent grains harrow

-Cooling solenoid va e

-Safety va e for fermenters

-Pressure gauge

-Thermometer

-Pipeline for cooling

-Temperaturesensor, PT100



For Reference:

1. For electrical elements part, we use SIEMENS, SCHNEIDER, DANFOSS, OMRON, ABB....etc. And UL standard

2. Can be customized, such as the capacity(dimension can be customized), material(SUS304/316), voltage(like 380v, 50Hz, 3phases), heating source(electric, steam or direct fired heating), etc.

3. The tanks will be surely well welded and polished, and tested before shipment.



OPTIONAL:

 Beer bottling line: bottle washing machine, bottle filling&capping machine,

 labelling machine.

 Kegs washer and filler.(one head or double head)

 Beer kegs(Europe/USA standards kegs).

 Steam boiler.



Payment Terms︰ TT/LC
