1500 liters Craft brewery plant, beer making equipment

Model No.︰

RM1500L

Brand Name︰

RAINBOW

Country of Origin︰

China

Unit Price︰

US $ 55000 / pc

Minimum Order︰

1 pc

Share on:

Product Description

                   Professional factory beer brewery equipment

MAIN CONFIGURATIONS:

This brewhouse system includes 3 tanks(mash tun/lautering tun, brew kettle/whirlpool, hot liquid tank), please check the details in the following chart.

Optional:    1- mash/brew kettle, lauter tun/whirlpool

                 2- mash/brew kettle, lauter tun, whirlpool

                 3- mash tun, lauter tun, brew kettle/whirlpool

                 4- mash tun, lauter tun, brew kettle, whirlpool

This is the 1500L brewing system configuration for your reference.

Items

Equipment

Specification

Quantity

(PCS)

Malt miller

Malt miller

300kg/hour

1

Brew house

Mash tun/lautering tun

1500L

1

Brew kettle/whirlpool

1500L

1

Hot liquid tank

1500L

1

Plate heat exchanger

12 m2

1

Pump

3 m³/h

1

Working platform



1

Fermentation

Fermenter

1500L

6

Oxygenator



1

Yeast adding tank

50L

1

Cooling unit

Glycol water tank

3000L

1

Cooling compressor

7hp

2

Water pump

3 m³/h

1

CIP unit

Alkali tank

100L

1

Sterilization tank

100L

1

Pump

3 m³/h

1

Control unit

Siemens PLC controlling system

1

Filter system

Kieselguhr filter machine

500L/H

1

Bright beer tank

1500L

1

Spare parts

All necessary spare parts such as pipes, valves, gauges and clamps…etc.

Heating source: electricity, gas fired or steam heating

Material: stainless steel 304 or copper

Warranty: 36 months for main equipments



Main features of brewhouse and fermentation:

Brewhouse system:

1) - Interior wall stainless steel 304, 3mm;

    -exterior wall stainless steel 304, 2mm

2) -Dome top, top manway with glass

   -Side manway, cone bottom 160 degree

3) - insulation: polyurethane/rockwool 100mm;

    - with inside CIP washing ball

    - raking agitator

    - removable false bottom

    - sparging arm, sight glass

    -Tangentiainlet for whirlpool

    -Thermowell for temperature sensor and thermometer....

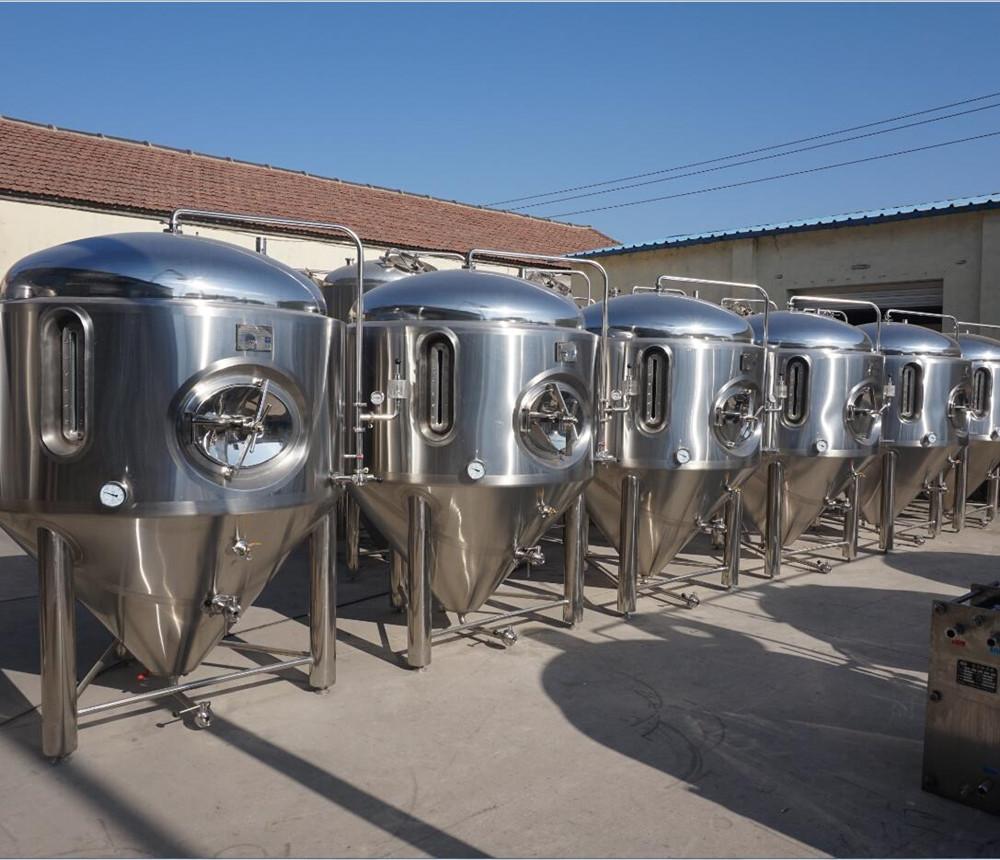

Fermentation system:

1) - Interior wall stainless steel 304, 3mm;

   -exterior wall stainless steel 304, 2mm

2) -Dome top, conical bottom

   -Side mounted manway

3) -Insulation: polyurethane 100mm

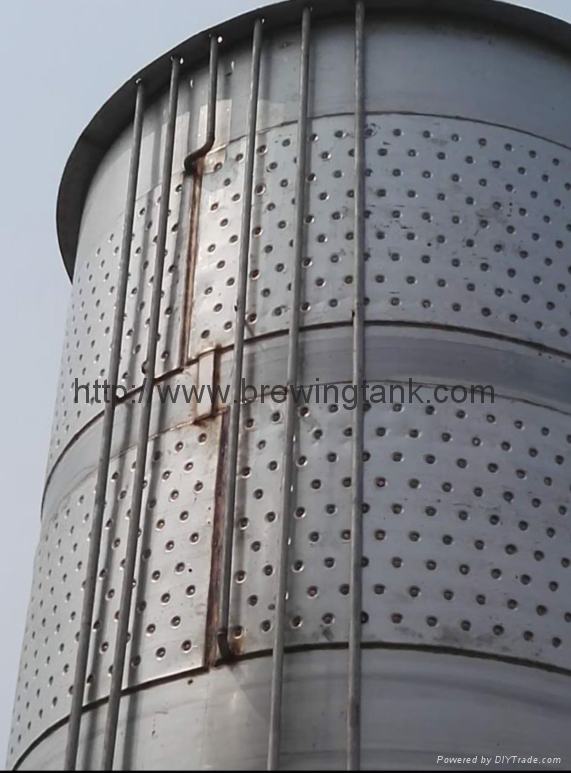

4) -Glycol cooling jackets on both cylinder and cone

5) - Inside 360 degree rotating CIP washing ball;

   - CIP arm

   - Pressure gauge

   - safety&vacuum valve on top

   - sample valve

   - Bung apparatus

   - rotating racking arm

   - thermometer

   - dry hops port on top

   -carbonation stone (optional)

6) -100% TIG welding with pure argon gas shield

   -Interior Finish: Mirror polishing to 0.4~0.6μm without dead corner

   -Testing pressure: 3 bar

   - working pressure: 1.5-2 bar

Main spare parts:

-Pipe line for brewhouse

-Butterfly valves

-Sight glass

-Measuring cylinder

-Saccharimeter, 0-10&10-20

-Spent grains harrow

-Cooling solenoid valve

-Safety/vacuum valve for fermenters

-Pressure gauge

-Thermometer

-Pipeline for cooling

-Expansion valve for glycol chiller

-Signal wire

-Cable

-Temperaturesensor, PT100



For Your Reference:

1. We have the capacity of 100L, 200L, 300L, 500L, 1000L, 1200L, 2000L, 3000L, 5000L, 8000L, 10000L...( 1bbl, 2bbl, 5bbl, 10bbl....) per patch for your reference.

It can be customized, such as the capacity, material, voltage(like 380v, 50Hz, 3phases), heating source, etc.

2. The brewer can also brew draft beer, pale beer, brown beer, stout beer etc,

to meet different taste of customers.

OPTIONAL:

Beer bottling line: bottle washing machine, filling machine, capping machine,

pasteurization tank, labelling machine.

Kegs washer and filler.

Beer kegs(10L,20L,30L,50L...).

Steam boiler.



COMPANY PROFILE:

We, Jinan Rainbow Machinery Co., Ltd  are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-20000L per patch (used for home, pub/hotel, factory, etc.) at a very competitive price, with product design, production, sales, and installation support.



We have been exporting beer brewing tanks to many places like USA, Canada, Ecuador, Germany, France, Czech Republic, Finland, Norway, Switzerland, Australia, Taiwan....etc.

1500liters beer production line, beer brewery machine



Payment Terms︰ TT/LC

Product Image
