Microbrewery, craft brewing equipment 5bbl brewing tank

Model No.︰

RM600L

Brand Name︰

RAINBOW

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

1 pc

Share on:

Product Description

Beer Brewery Equipment

COMPANY PROFILE:

We, Jinan Rainbow Machinery Co., Ltd  are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-20000L per patch (used for home, pub/hotel, factory, etc.) at a very competitive price, with product design, production, sales, and installation support.

We have been exporting beer brewing tanks to many places like USA, Canada, Ecuador, Germany, France, Czech Republic, Finland, Norway, Switzerland, Australia, Taiwan....etc.



MAIN CONFIGURATIONS:

This is the 1000L brewing system for reference.

Items

Equipment

Specification

Quantity

(PCS)

Malt miller

Malt miller

300kg/hour

1

Brewhouse

Mash tun/lautering tun

1000L

1

Brew kettle/whirlpool

1000L

1

Hot liquor tank

1000L

1

Plate heat exchanger

12 m2

1

Pump

m³/h

2

Oxygenator



1

Working platform



1

Fermentation

Fermenter

1000L

6

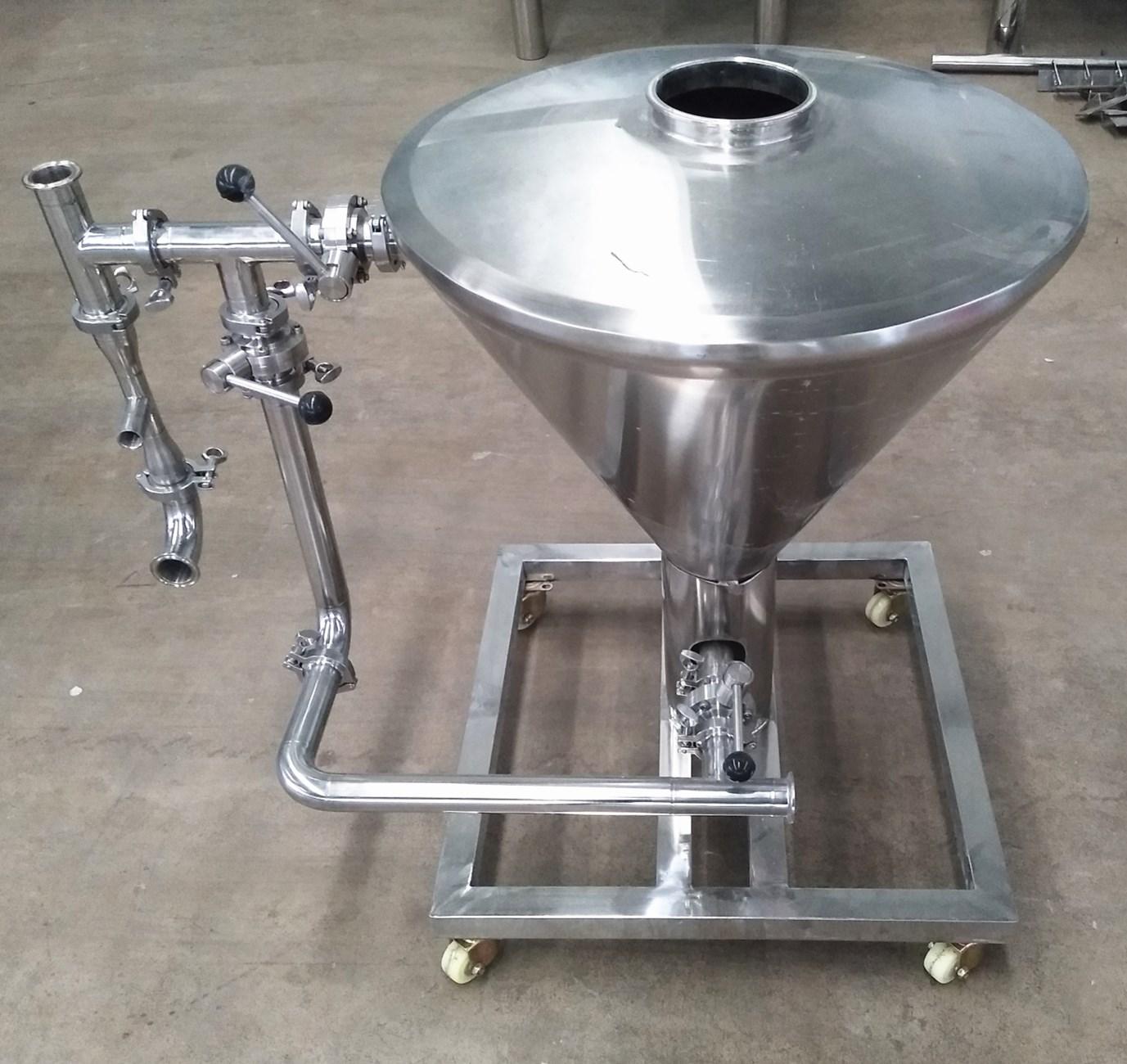

Yeast adding tank

 30L

1

Cooling unit

Glycol water tank

1500L

1

Cooling compressor

8hp

1

Water pump

m³/h

1

CIP unit

Alkali tank

100L

1

Sterilization tank

100L

1

Pump

m³/h

1

Control unit

PID control/SIEMENS PLC control system

1

Spare parts

All necessary spare parts such as pipes, valves, gauges and clamps…etc


    Material: stainless steel 304/316 or copper





Main specs of brewhouse and fermentation:

Brewhouse system:

(  Heating method: steam, electric or gas fired heating)

WHAT'S YOUR PREFER ONE PLEASE?

Optional         1- mash tun, lauter tun, brew kettle/whirlpool

                    2- mash/brew kettle, lauter tun, whirlpool

                   3- mash/brew kettle, lauter tun/whirlpool

                   4- mash tun, lauter tun, brew kettle, whirlpool

Can be CUSTOMIZED.



1) - Interior wall stainless steel 304, 3mm;

     -exterior wall stainless steel 304, 2mm

2) - Dome top, top manway with glass

    - Side manway, cone bottom 160 degree

3) - Insulation: polyurethane/rockwool 100mm;

     - with inside CIP washing ball

     -agitator

     -removable false bottom

     -sparging arm, sight glass

     -Tangential inlet for whirlpool

     -Auger, grist case, hydrator(optional)

     -Level tube(optional)

     -100% TIG welding with pure argon gas shield

      -Interior Finish:Mirror polishing to 0.4~0.6μm without dead corner



Fermentation system:

1) - Interior wall stainless steel 304, 3mm;

     - exterior wall stainless steel 304, 2mm

 2) - Dome top, conical bottom,

     - Side/top mounted manway

3) - Insulation: polyurethane 100mm

4) - Glycol cooling jackets on both cylinder and cone

5) - Inside 360 degree rotating CIP washing ball;

     - CIP arm

     - Bung apparatus

     - relief&vacuum valve on top

      -sample valve

     - rotating racking arm on cone with butterfly valve

     - thermometer

     - carbonation stone (optional)

     - level indicator(optional)

    -  dry hops port on top

 6)  -100% TIG welding with pure argon gas shield

      - Interior Finish:Mirror polishing to 0.4~0.6μm without dead corner



Highlights

1. For electrical elements part, we use SIEMENS, SCHNEIDER, DANFOSS, OMRON, ABB....etc. And UL standard

2. Can be customized, such as the capacity(dimension can be customized), material(SUS304/316), voltage(like 380v, 50Hz, 3phases), heating source(electric, steam or direct fired heating), etc.

3. The tanks will be surely well welded and polished, and tested before shipment.



OPTIONAL:

 Beer bottling line: bottle washing machine, bottle filling&capping machine,

 labelling machine.

 Kegs washer and filler.(one head or double head)

 Beer kegs(Europe/USA standards kegs).

 Steam boiler.



pub brewing

brewhouse

4 tank

beer fermenter tank1.jpgside manway.jpg

CIP washing tank

factory outside



Payment Terms︰ TT/LC
