1000L, 2000L Industrial beer machine/brewing equipment

Model No.︰

RM1000L

Brand Name︰

RAINBOW

Country of Origin︰

China

Unit Price︰

US $ 48600 / pc

Minimum Order︰

1 pc

Share on:

Product Description

                           Beer brewing equipment

 COMPANY PROFILE:

We, Jinan Rainbow Machinery Co., Ltd  are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-20000L per patch (used for home, pub/hotel, factory, etc.) at a very competitive price, with product design, production, sales, and installation support.

We have been exporting beer brewing tanks to many places like USA, Canada, Ecuador, Germany, France, Czech Republic, Finland, Norway, Switzerland, Australia, Taiwan....etc.



MAIN CONFIGURATIONS:

This brewhouse system includes 3 tanks(mash tun/lautering tun, brew kettle/whirlpool, hot liquid tank), please check the details in the following chart.

Optional:    1- mash/brew kettle, lauter tun/whirlpool

                   2- mash/brew kettle, lauter tun, whirlpool

                 3- mash tun, lauter tun, brew kettle/whirlpool

               4- mash tun, lauter tun, brew kettle, whirlpool

This is the 1000L brewing system configuration for your reference.

Items

Equipment

Specification

Quantity

(PCS)

Malt miller

Malt miller

300kg/hour

1

Brew house

Mash tun/lautering tun

1000L

1

Brew kettle/whirlpool

1000L

1

Hot liquor tank

1000L

1

Plate heat exchanger

12 m2

1

Pump

3 m³/h

2

Working platform



1

Fermentation

Fermenter

1000L

6

Yeast adding tank

30L

1

Wort oxygenator



1

Cooling unit

Glycol water tank

1500L

1

Cooling compressor

7hp

1

Water pump

3 m³/h

1

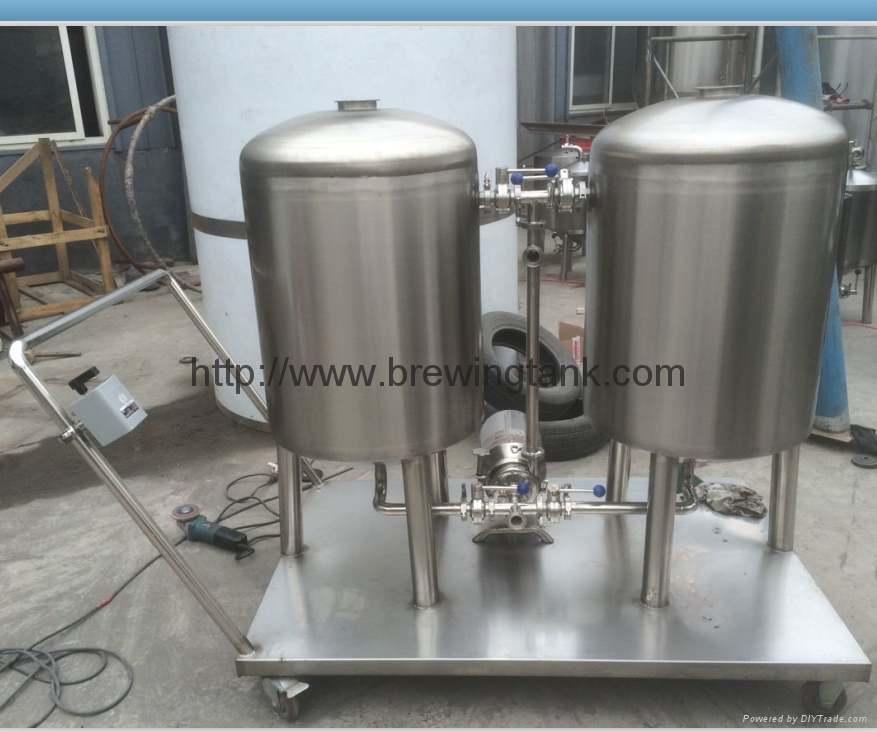

CIP unit

Alkali tank

100L

1

Sterilization tank

100L

1

Pump

3 m³/h

1

Control unit

Siemens PLC controlling system

1

Filter system

Kieselguhr filter machine

200L/H

1

Bright beer tank

1000L

1

Spare parts

All necessary spare parts such as pipes, valves, gauges and clamps…etc.

Heating source: electricity, gas fired or steam heating

Material: stainless steel 304/316 or copper

Warranty: 36 months for main equipments



Main features of brewhouse and fermentation:

Brewhouse system:

1) - Interior wall stainless steel 304, 3mm;

     -exterior wall stainless steel 304, 2mm

2) -Dome top, top manway with glass

   -Side manway, cone bottom 160 degree

3) - insulation: polyurethane/rockwool 100mm;

   - with inside CIP washing ball

   - agitator

   - removable false bottom

   - sparging arm, sight glass

   -Tangential inlet for whirlpool

   -Thermowell for temperature sensor and thermometer....

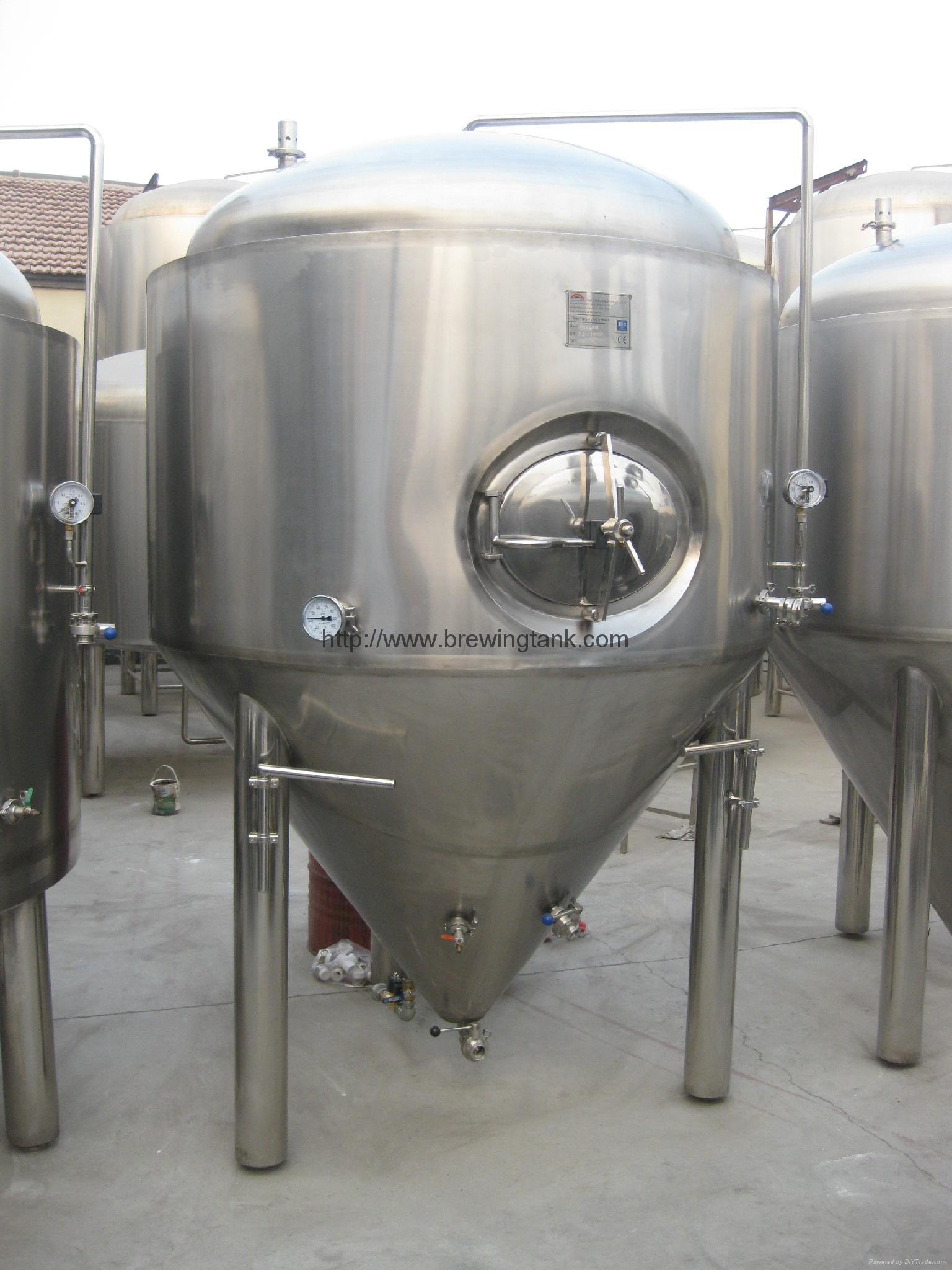

Fermentation system:

1) - Interior wall stainless steel 304, 3mm;

   - exterior wall stainless steel 304, 2mm

2) -Dome top, conical bottom,

   -Top manway

3) -Insulation: polyurethane 100mm

4) -Glycol cooling jackets on both cylinder and cone

5) - Inside 360 degree rotating CIP washing ball;

   - CIP arm

  - Pressure gauge

  - safety&vacuum valve on top

  - sample valve

  - rotating racking arm

  - thermometer

  - dry hops port on top

  -carbonation stone (optional)

6) -100% TIG welding with pure argon gas shield

     -Interior Finish: Mirror polishing to 0.4~0.6μm without dead corner

   -Testing pressure: 3 bar

   -working pressure: 1.5-2 bar



OPTIONAL

 Beer bottling line: bottle washing machine, filling machine, capping machine,

 pasteurization tank, labelling machine.

 Kegs washer and filler.

 Beer kegs(10L,20L,30L,50L...).

 Steam boiler.







For Your Reference:

1. For electrical elements part, we use SIEMENS, SCHNEIDER, DANFOSS, OMRON, ABB....etc. And we also do UL standard.



 2. We have the capacity of 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 5000L, 8000L, 10000L... (1bbl, 2bbl, 5bbl, 10bbl....) per patch for your reference.

     It can be customized, such as the capacity, material(SUS304/316), voltage(like 380v, 50Hz, 3phases), heating source(electric, steam or gas fired heating), etc.



 3. The brewer can also brew draft beer, pale beer, brown beer, stout beer etc,

    ALE, LAGER....







1000L per patch brewing system, brewery equipment, beer brewing machine

1000L per patch brewing system, brewery equipment, beer brewing machine

1000L per patch brewing system, brewery equipment, beer brewing machine



Payment Terms︰ TT/LC
