1000L complete beer brewing line, brewery equipment

Model No.︰

RM1000L

Brand Name︰

RAINBOW

Country of Origin︰

China

Unit Price︰

US $ 46880 / pc

Minimum Order︰

1 pc

Share on:

Product Description



 Professional beer brewing equipment



COMPANY PROFILE:

We, Jinan Rainbow Machinery Co., Ltd  are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-20000L per patch (used for home, pub/hotel, factory, etc.) at a competitive price, with product design, production, sales, and installation support.

We have been exporting beer brewing tanks to many places like USA, Canada, Ecuador, Germany, France, Czech Republic, Finland, Norway, Switzerland, Australia, Taiwan....etc.

 Engineers are available for Overseas service.  Provide installation, commissioning/testing, maintaining and personal training, beer production technology.



MAIN CONFIGURATIONS:

 This brewhouse system includes 3 tanks(mash tun/lautering tun, brew kettle/whirlpool, hot liquor tank), please check the details in the following chart.

Optional:       1- mash/brew kettle, lauter tun/whirlpool

                   2- mash/brew kettle, lauter tun, whirlpool

                  3- mash, brew kettle, lauter tun/whirlpool

                 4- mash tun, lauter tun, brew kettle/whirlpool

                5- mash tun, lauter tun, brew kettle, whirlpool



This following chart is the 1200L brewing system configuration for your reference.

Items

Equipment

Specification

Quantity

(PCS)

Malt miller

Malt miller

300kg/hour

1

Brew house

Mash tun/lautering tun

1200L

1

Brew kettle/whirlpool

1200L

1

Hot liquor tank

1200L

1

Plate heat exchanger

12 m2

1

Wort pump

3 m³/h

1

Ht liquor pump

3 m³/h

1

Oxygenator



1

Working platform



1

Fermentation

Fermenter

1200L

6

Yeast adding tank

30L

1

Cooling unit

Glycol water tank

2000L

1

Cooling compressor

5hp

2

Water pump

3 m³/h

1

CIP unit

Alkali tank

100L

1

Sterilization tank

100L

1

Pump

3 m³/h

1

Control unit

Digital display controlling box

1

Filter system

Kieselguhr filter machine

300L/H

1

Bright beer tank

1200L

1

Spare parts

With all necessary spare parts such as pipes, valves, gauges and clamps…etc.

Heating source: electricity, baine-marie heating, gas fired or steam heating

Material: stainless steel 304/316 or copper



Main features of brewhouse and fermentation:

Brewhouse system:

1) - Inner wall stainless steel 304, 3mm;

    -surface wall stainless steel 304, 2mm

2) - Dome top, top manway with glass

    - Side manway, cone bottom 160 degree

3) - Insulation: polyurethane/rockwool 100mm;

     - with inside CIP washing ball

     - Agitator

     - removable false bottom

     - sparging arm, sight glass

      -Tangential inlet for whirlpool

      -Thermowell for temperature sensor and thermometer

      -100% TIG welding with pure argon gas shield

      -Interior Finish: Mirror polishing to 0.4~0.6μm without dead corner

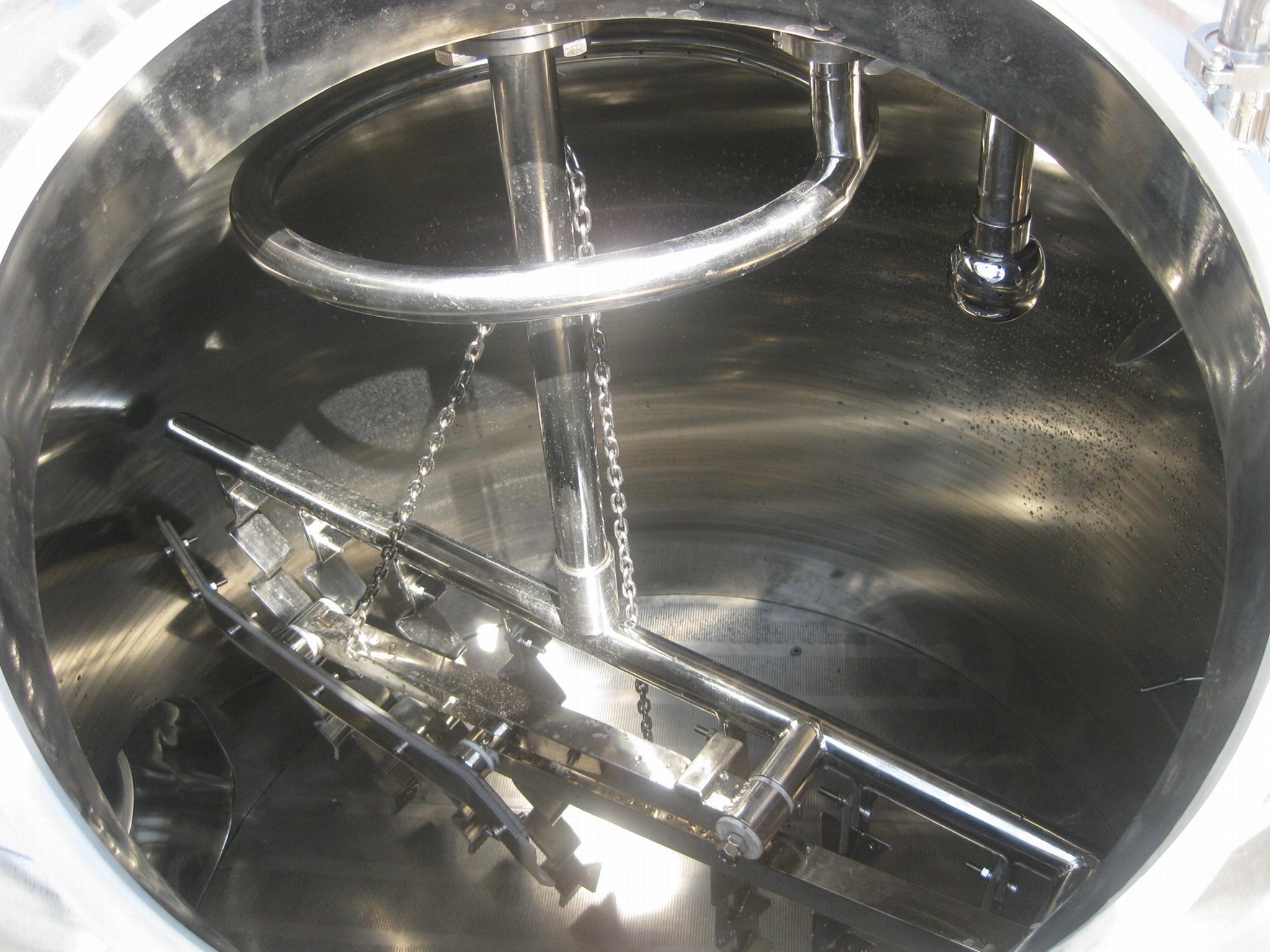

Inside:

1000L 10BBL Craft beer brewing equipment/factory brewery system/jacketed fermenter

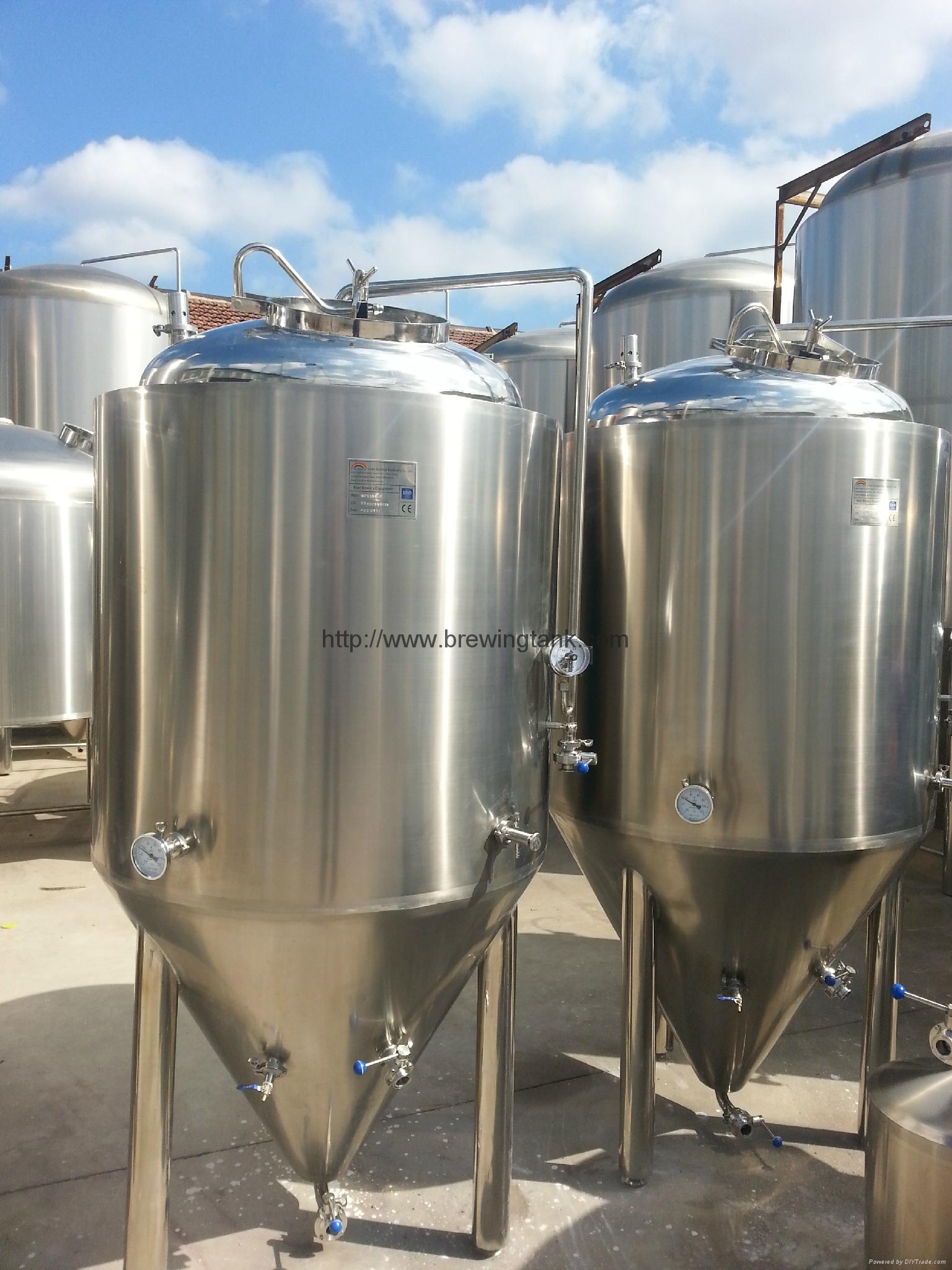

Fermentation system:

1) - Inner wall stainless steel 304, 3mm;

      -surface wall stainless steel 304, 2mm

 2)  -Dome top, conical bottom,

      -Top mounted manway

3)  -Insulation: polyurethane 100mm

4)  -Glycol cooling jackets on both cylinder and cone

5) - Inside 360 degree rotating CIP washing ball;

     - CIP arm

     - Pressure gauge

     - relief&vacuum valve on top

      -dry hops port on top

      -sample valve

      -bung apparatus

     - rotating racking arm on cone

     - thermometer

      -carbonation stone (optional)

 6)  -100% TIG welding with pure argon gas shield

      -Interior Finish:Mirror polishing to 0.4~0.6μm without dead corner

      -Testing pressure: 3 bar

      -working pressure: 1.5-2 bar



OPTIONAL

 Beer bottling line: bottle washing machine, filling machine, capping machine,

 pasteurization tank, labelling machine.

 Kegs washer and filler.(one head or double head)

 Beer kegs(10L,20L,30L,50L...).

 Steam boiler.





Reference:

1For electrical elements part, we use SIEMENS, SCHNEIDER, DANFOSS, OMRON, ABB....etc. Also do UL standard.



 2. We have the capacity of 100L, 200L, 300L, 500L, 1000L, 1200L, 2000L, 3000L, 5000L, 8000L...(1bbl, 2bbl, 5bbl, 10bbl....) per patch for your choice.

      It can be customized, such as the capacity(dimension can be customized), material(stainless steel 304/316 or copper), voltage(like 380v, 50Hz, 3phases), heating source(electric, steam or gas fired heating), etc.



3. The brewer can also brew draft beer, pale beer, brown beer, stout beer etc.

   ALE, LAGER....



1000L 10BBL Craft beer brewing equipment/factory brewery system/jacketed fermenter

1000L 10BBL Craft beer brewing equipment/factory brewery system/jacketed fermenter

1000L 10BBL Craft beer brewing equipment/factory brewery system/jacketed fermenter

1000L 10BBL Craft beer brewing equipment/factory brewery system/jacketed fermenter

1000L 10BBL Craft beer brewing equipment/factory brewery system/jacketed fermenter

1000L 10BBL Craft beer brewing equipment/factory brewery system/jacketed fermenter

1000L 10BBL Craft beer brewing equipment/factory brewery system/jacketed fermenter

1000L 10BBL Craft beer brewing equipment/factory brewery system/jacketed fermenter

1000L 10BBL Craft beer brewing equipment/factory brewery system/jacketed fermenter

1000L 10BBL Craft beer brewing equipment/factory brewery system/jacketed fermenter



Payment Terms︰ TT/LC
