200L mini brewery equipment, beer brewing system

Model No.︰

RM200L

Brand Name︰

RAINBOW

Country of Origin︰

China

Unit Price︰

US $ 26800 / pc

Minimum Order︰

1 pc

Share on:

Product Description

MAIN CONFIGURATIONS:

This brewhouse system includes 3 tanks(mash tun/lautering tun, brew kettle/whirlpool, hot liquid tank), please check the details in the following chart.

Optional: 1- mash/brew kettle, lauter tun/whirlpool

2- mash/brew kettle, lauter tun, whirlpool

3- mash tun, lauter tun, brew kettle/whirlpool

4- mash tun, lauter tun, brew kettle, whirlpool

This is the 200L complete brewing system configuration for your reference.



ITEMS



EQUIPMENT LIST



CAPACITY



QTY

Malt miller

Malt Miller

200kg/h

1







BrewHouse System

Mash Tun & Lautering Tun

200L

1

Brew Kettle & Whirlpool

200L

1

Hot Liquid Tank

200L

1

Plate Heat Exchanger

3m2

1

Wort pump

3m³/h

1

Wort Oxygenator



1

Working platform



1



Fermentation System

Fermentation Tank

200L

6

Yeast Adding Tank

30L

1





Cooling System

Glycol Water Tank

400L

1

Refrigerator

3hp

1

Cooling water pump

3m³/h

1





CIP Washing System

Alkali Tank

50L

1

Sterilization tank

50L

1

CIP water pump

3m³/h

1

Control System

Digital display control box

1



Heating source: electricity, baine-marie heating, gas fired or steam heating

Material: stainless steel 304 or copper

Warranty: 36 months for main equipments





Main features of brewhouse and fermentation:

Brewhouse system:

1) - interior wall stainless steel 304, 3mm;

- exterior wall stainless steel 304 or copper

2) Dome top, top manway with glass

Side manway, cone bottom 160 degree

3) - insulation: polyurethane/rockwool 100mm;

- with inside CIP washing ball

- raking agitator

- removable false bottom

- sparging arm, sight glass

-Tangential inlet for whirlpool

-Thermowell for temperature sensor and thermometer....

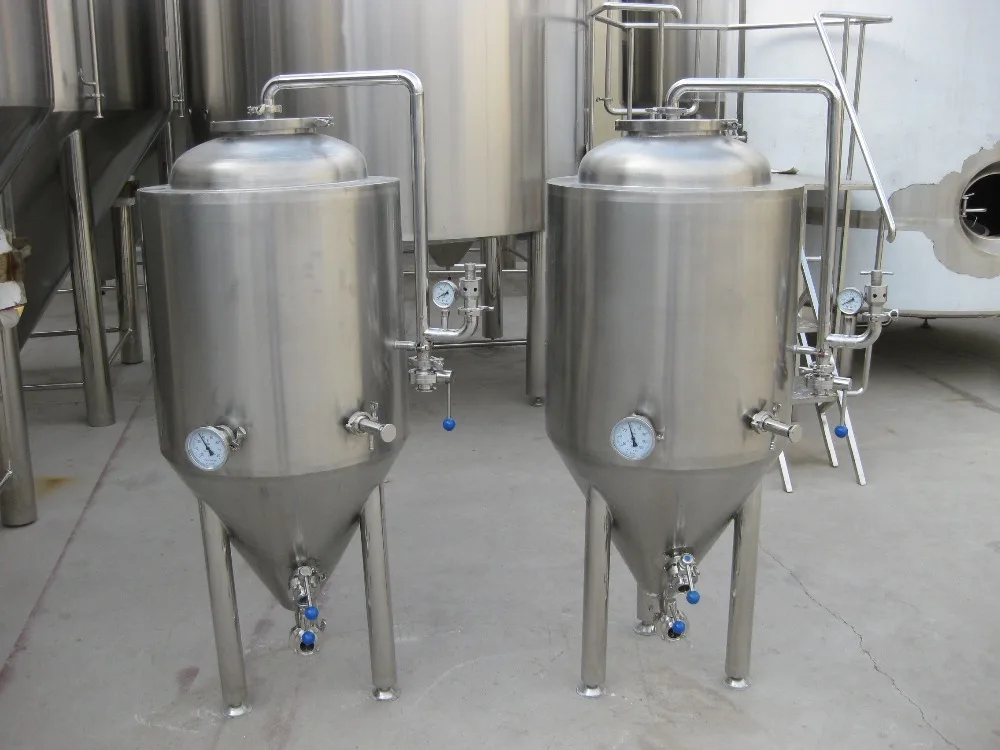

Fermentation system:

1) - Interior wall stainless steel 304, 3mm;

- exterior wall stainless steel 304, 2mm

2) Dome top, conical bottom,

Top blind manway

3) Insulation: polyurethane 100mm

4) Glycol cooling jackets on both cylinder and cone

5) - Inside 360 degree rotating CIP washing ball;

- CIP arm

- Pressure gauge

- safety&vacuum valve on top

- sample valve

- rotating racking arm

- thermometer

-dry hops port on top

-carbonation stone (optional)

6) -100% TIG welding with pure argon gas shield

-Interior Finish:Mirror polishing to 0.4~0.6μm without dead corner

-Testing pressure: 3 bar

-working pressure: 1.5-2 bar



Main spare parts:

Pipe line for brewhouse

SUS304

Measuring cylinder

SUS304

Butterfly valve

Ø32

Butterfly valve

Ø38

Sight glass

Ø32

Saccharimeter

0-10; 10-20

Spent grains harrow

SUS 304

Steam solenoid valve

Ø32

Fermenter’s safety valve

Ø51

Fermenter’s Sample valve

ø32

Pressure gauge

0-0.6Mpa

Pipe line for cooling unit

SUS 304

Cooling water solenoid valve

ø32

Cooling pipe insulation



Expansion valve for cooling compressor



Control box cable



Signal wire



Electric relay

Omron

Temperature sensor

PT100



For Your Reference:

1. We have the capacity of 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 5000L, 8000L...( 1bbl, 2bbl, 5bbl, 10bbl....) per patch for your reference.

It can be customized, such as the capacity, material, voltage(like 380v, 50Hz, 3phases), heating source, etc.

2. The brewer can also brew draft beer, pale beer, brown beer, stout beer etc,

to meet different taste of customers.

OPTIONAL:

Beer bottling line: bottle washing machine, filling machine, capping machine,

pasteurization tank, labelling machine.

Kegs washer and filler.

Beer kegs(10L,20L,30L,50L...), beer tower.

Steam boiler.



Company Profile:

We, Jinan Rainbow Machinery Co., Ltd are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-10000L per patch (used for home, pub/hotel, factory, etc.) at a very competitive price, with product design, production, sales, and installation support.



All the necessary spare parts:



Payment Terms︰ TT/LC
