8000L Glycol jackets beer fermentation tanks, conical beer fermenter

Model No.︰

FV8000L

Brand Name︰

RAINBOW

Country of Origin︰

China

Unit Price︰

US $ 12000 / pc

Minimum Order︰

1 pc

Share on:

Product Description

FEATURES:

-Total capacity: 10000L

-Useful capacity: 8000L

-Material:

  Inside wall,SUS 304, 3mm

  Outside wall, SUS 304, 2mm

-Insulation: polyurethane 100mm

-100%TIG welding with pure argon gas shield

-Cone bottom, 60-72 degree

-Cooling jackets on both cylinder and cone, SUS304, 1.5mm

-Interior Finish: Mirror polishing to 0.4~0.6μm without dead corner

-Dry hopping port on top

-Side mounted manway

-Carbonation stone(optional)

-Safety&vacuum va e on top

-Sample va e on side

-Test Pressure:0.3 Mpa,Working pressure 0.2Mpa.

-Rotating racking arm on cone with butterfly va e

-Discharge arm with butterflyva e

-CIP arm with 360° coverage CIP spraying ball

-Thermowell with high accuracy temperaturesensor: PT100



Optional:

Capacity scope: 100L to 20000L per patch, can be customized

complete beer brewing system, include malt miller, brewhouse system, fermenting system, cooling system, CIP system, controlling system, filter system.









Payment Terms︰ TT/LC

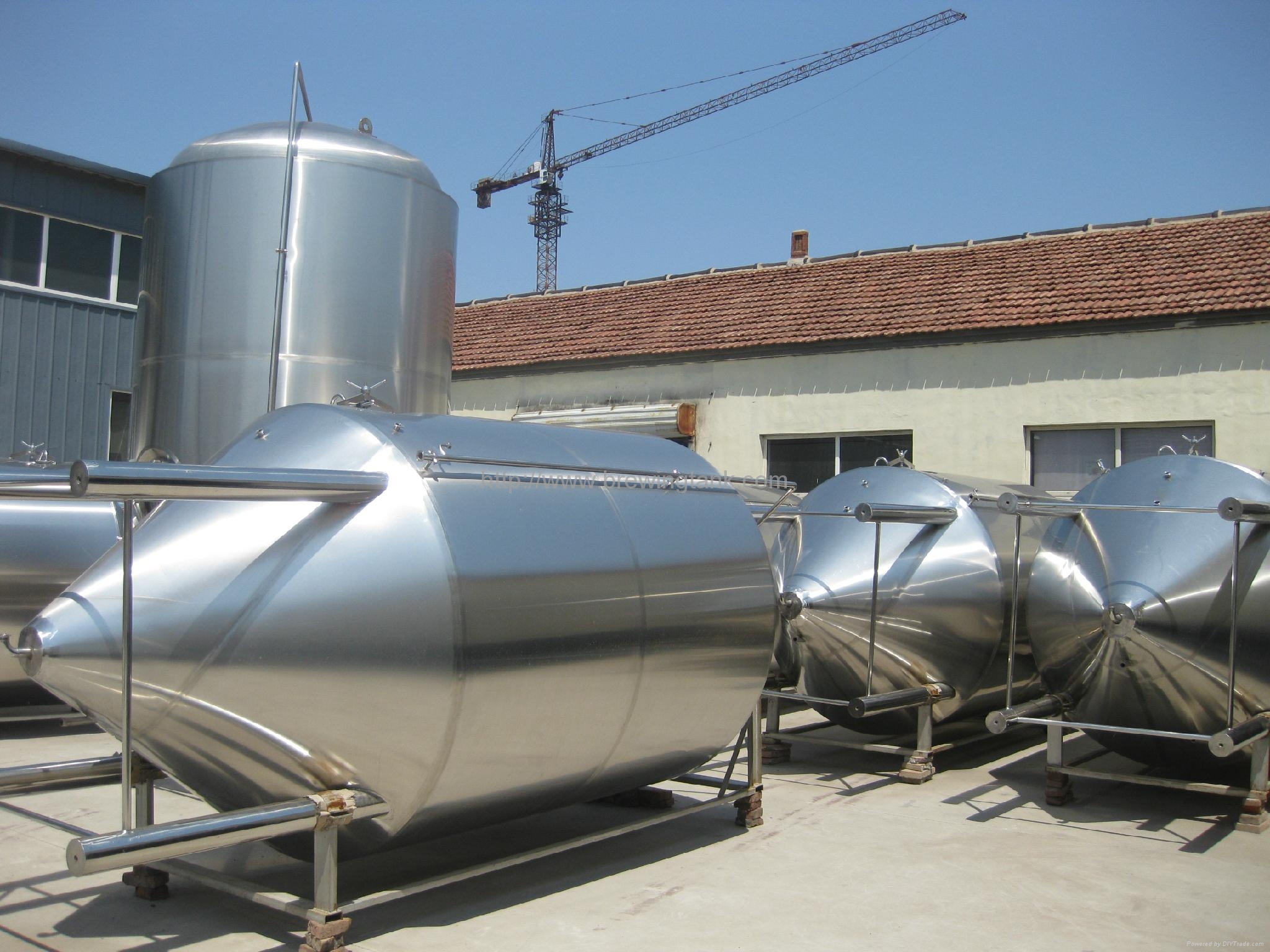

Product Image
