Product Description

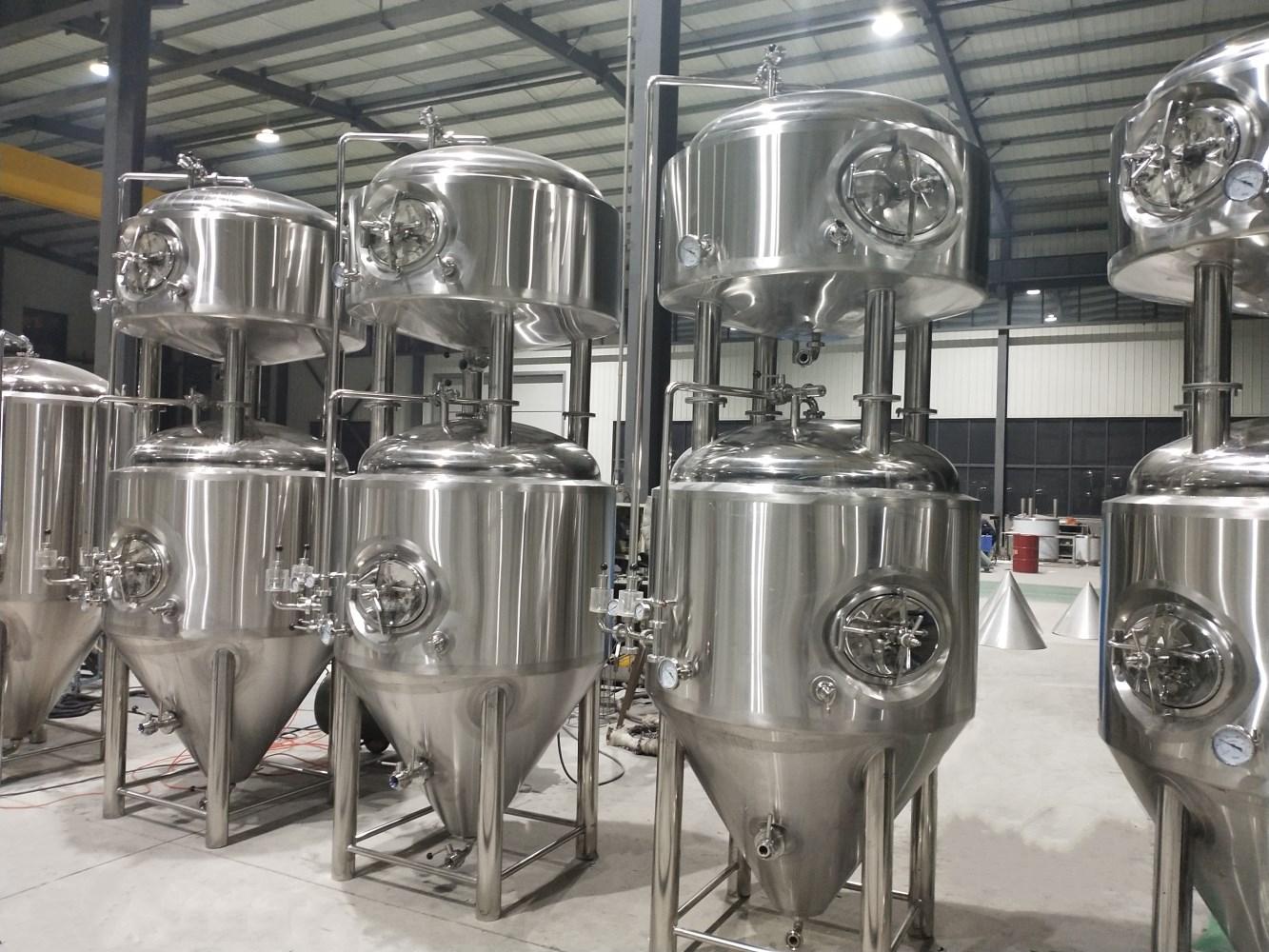

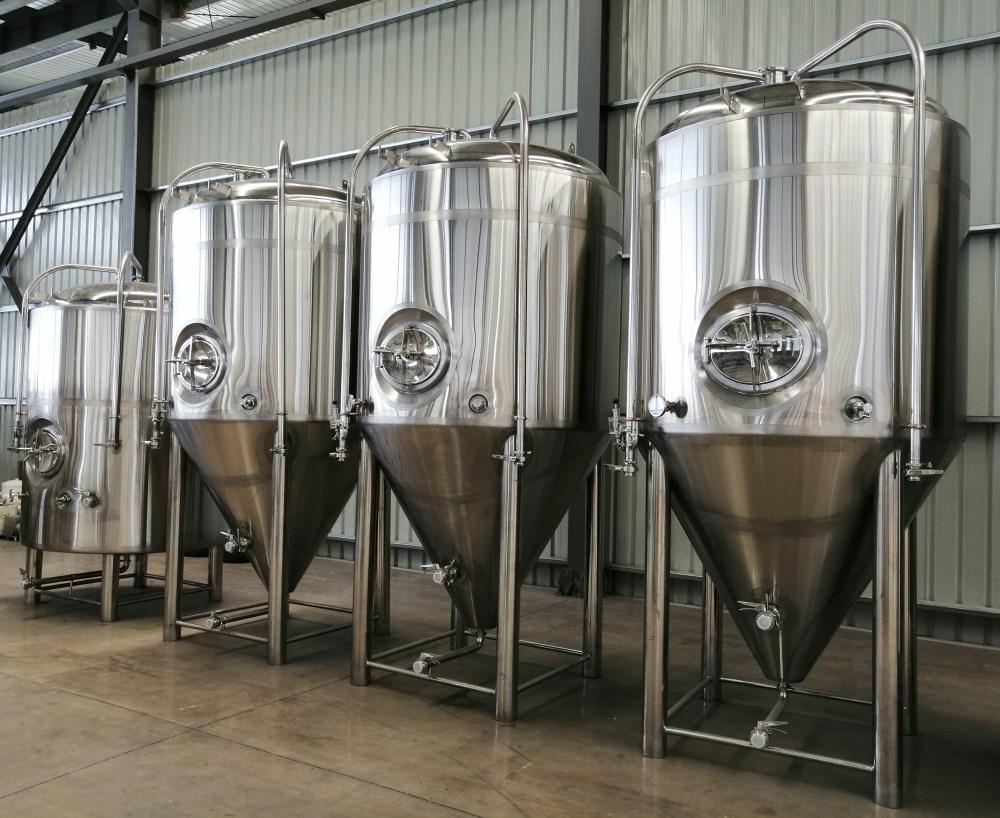

Beer Fermentation Tank For Beer brewery
Total Volume: with 25% head space
Inner: SUS 304 T3mm;
Layer: SUS 304 T2mm;
Jacket: SUS 304 Dimple Plate
Insulation: PU 100MM
| |
Other Configurations
|
|
Top:
|
Dome Top, with ratating CIP ball TC
|
|
Bottom:
|
Conical 60 Degree with Drainage Valve
|
|
Jackets:
|
Both on Bottom and Cylinder Parts
|
|
CIP:
|
CIP Arm with Rotating ball, Butterfly valve
|
|
Valves:
|
Safety/Vacuum Valve, Sample Valve
|
|
Outlet:
|
Rotation Rack Arm SMS76*32TC Valve
|
|
Temp.:
|
Thermometer and PT-100
|
|
Testing:
|
Test:0.3Mpa, Working: 0.15-0.2Mpa
|
|
Pressure:
|
Bung Apparatus with Pressure Gauge
|
|
Polishing:
|
0.4-0.6μm/ or Mirror polishing
|
|
Legs:
|
4 legs with adjustable Bolts
|
|
Cooling:
|
Cooling ports, Threads ø25mm
|
|
Parts:
|
With gaskets, Cooling pipe fittings
|
Regular with Top Oval Manhole
Optional :Side Manhole
CO2 Carbonation Stone
Level Tube
Company Introduction
Established in 2011, Jinan Rainbow Machinery Co., Ltd., is a professional manufacturer and leading exporter of beer brewery equipment. Its products ranging from 50L to 30,000L. No matter you are home hobby brewer, brew pub or micro brewery, you will find out a perfect brewing system here from Rainbow Machinery.
Rainbow Machinery is exporting brewing tanks to many countries like Germany, France, Finland, Norway, Czech Republic, Switzerland, USA, Canada, Paraguay, Ecuador, Australia and so on.
Our Services & Strength
Space Planning; Customization; Installation; Commissioning; Maintenance According to customer requirements to provide one-stop brewing beer project solution: process flow chart; site layout; cost-benefit analysis.with Rainbow advanced experience
Exhibition
After Sales Service
Rainbow Service
1.Rainbow provides 5 years warranty on main equipment and one year warranty for the electric parts.
2.Necessary extra parts would be provided together with the system, butterfly valves, fittings, gaskets, pressure gauge, solenoid valves, electric relies and so on.
3.Delivery parts would be provided as well on your future request.
4.Overseas on-site installation engineer available.
Packing&Shipping
For Less Container Loading:
Carbon steel with PLY wooden package suitable for long marine transport
For Full Container Loading PE Stretch film with soft material outside protecting
