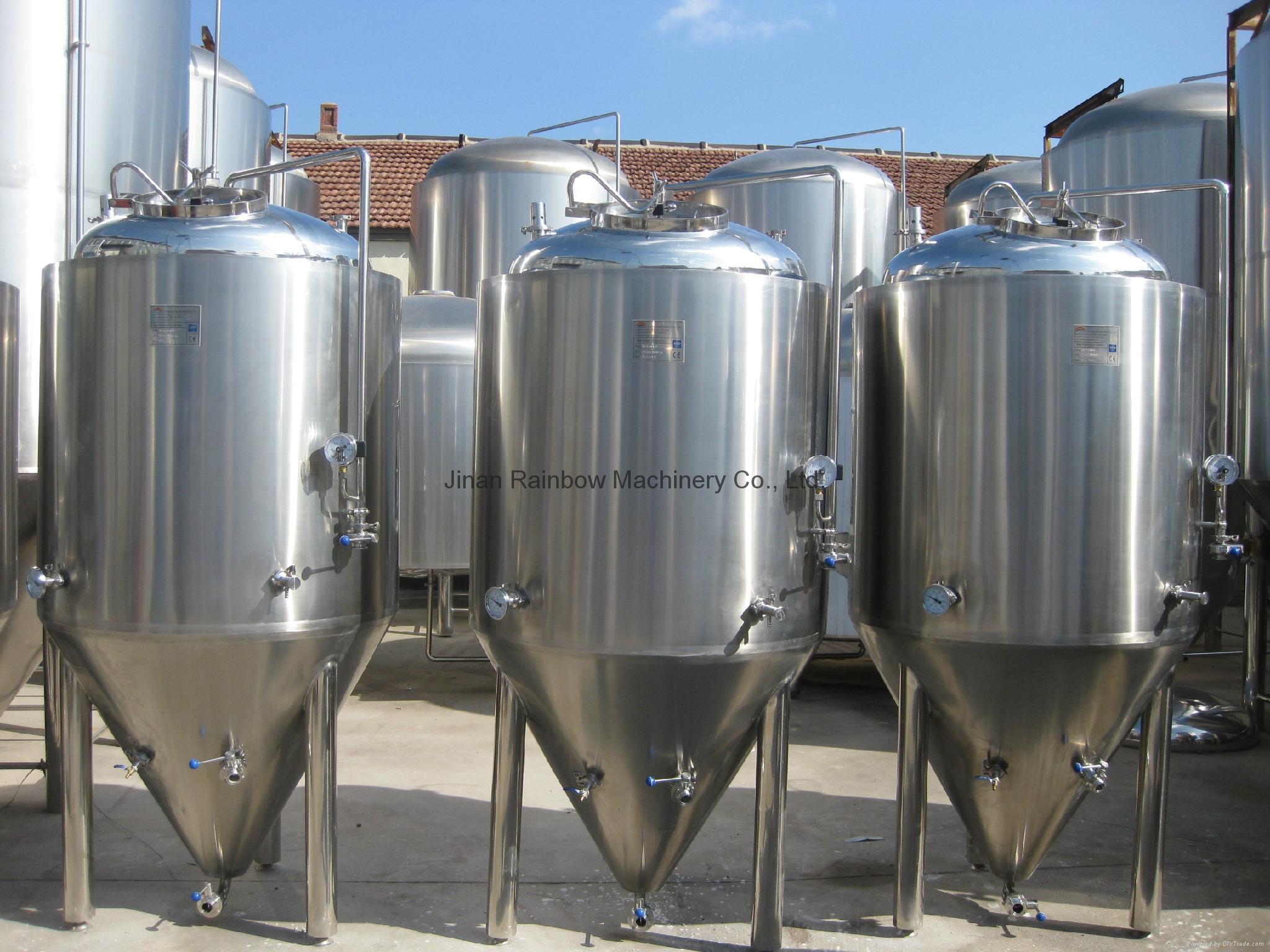

We are the manufacturer and exporter of beer brewing equipment with CE and ISO9001 approve.
Capacity scope: 100L to 10000L per patch. Can be customized.
Inside wall,SUS 304, 3mm
Outside wall, SUS 304, 1.5mm
-Cooling jackets on both cylinder and cone
SUS 304, 1.5mm
-Insulation: polyurethane 100mm
-Cone bottom, 60/72 degree
-Inside 360 rotating CIP ball
-Temperature sensor, Model: PT100
-Safety&vacuum valve on top
-Sample valve on side
-Inside polishing 0.4-0.6 micron
-Working pressure: 0.15Mpa
-Testing pressure: 0.3Mpa
-Wort piping and butterfly valves, ø32mm
-Drainage piping and butterfly valve, ø38mm
-3 legs with adjustable bolts
Option: complete beer brewing system, include malt miller, brewhouse system, fermenting system, cooling system, CIP system, controlling system, filter system.
