30BBL Factory Beer Brewing Equipment, Brewery system

Model No.︰

-

Brand Name︰

RAINBOW

Country of Origin︰

China

Unit Price︰

US $ 143000 / pc

Minimum Order︰

1 pc

Share on:

Product Description

MAIN CONFIGURATIONS:

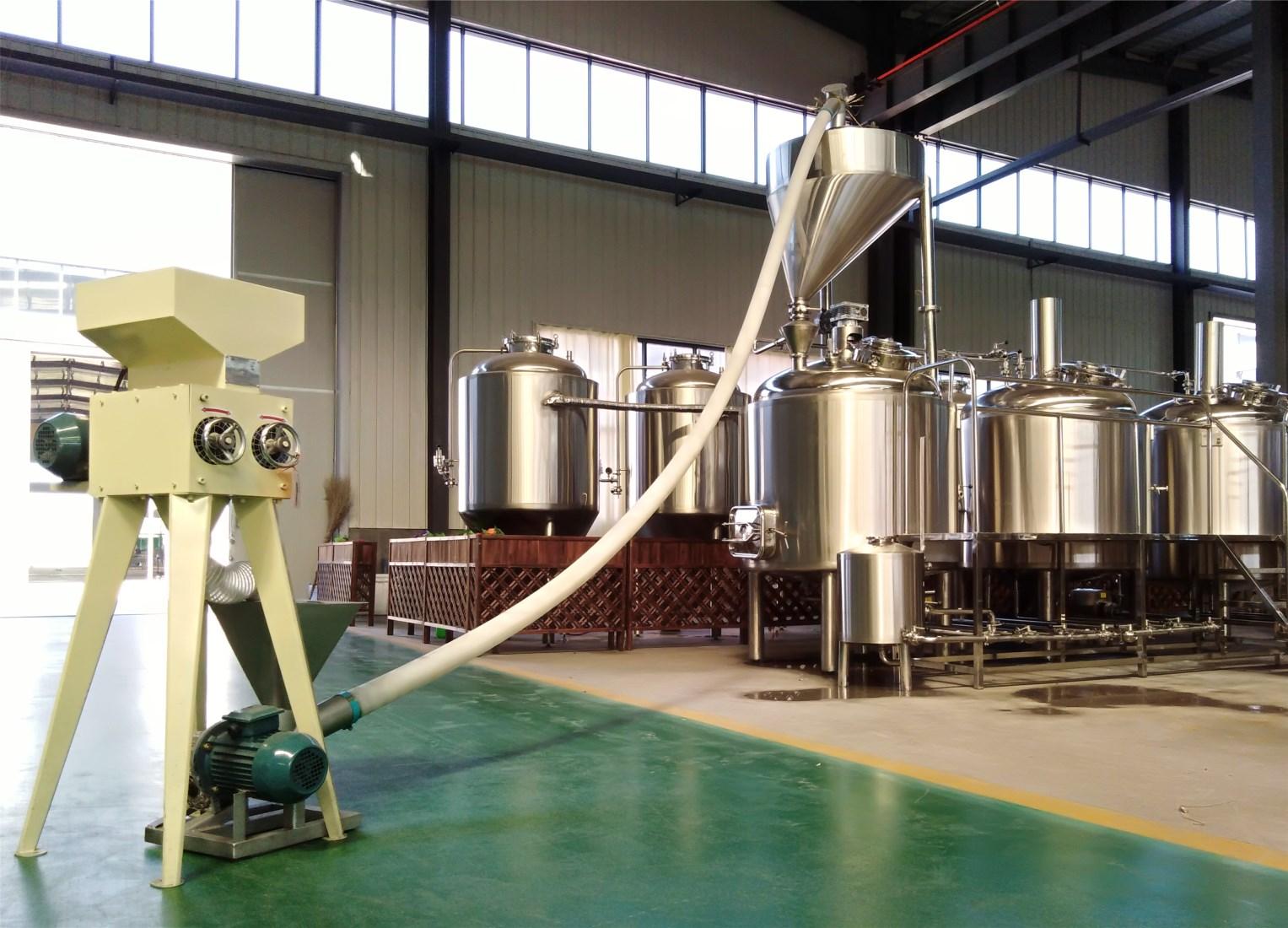

Grain handling system: malt miller, auger, grist case

Brewhouse system: mash tun, lauter tun, brew kettle, whirlpool tank, hot liquor tank.

Fermentation system.

Cooling system.

CIP washing system.

SIEMENS PLC controlling system.



OPTIONAL Equipments:

 Beer bottling line: bottle washing machine, bottle filling&capping machine,

 labelling machine.

 Kegs washer and filler.(one head or double head)

 Beer kegs(Europe/USA standards kegs).

 Steam boiler.



Some main specs of brewhouse and fermentation tank

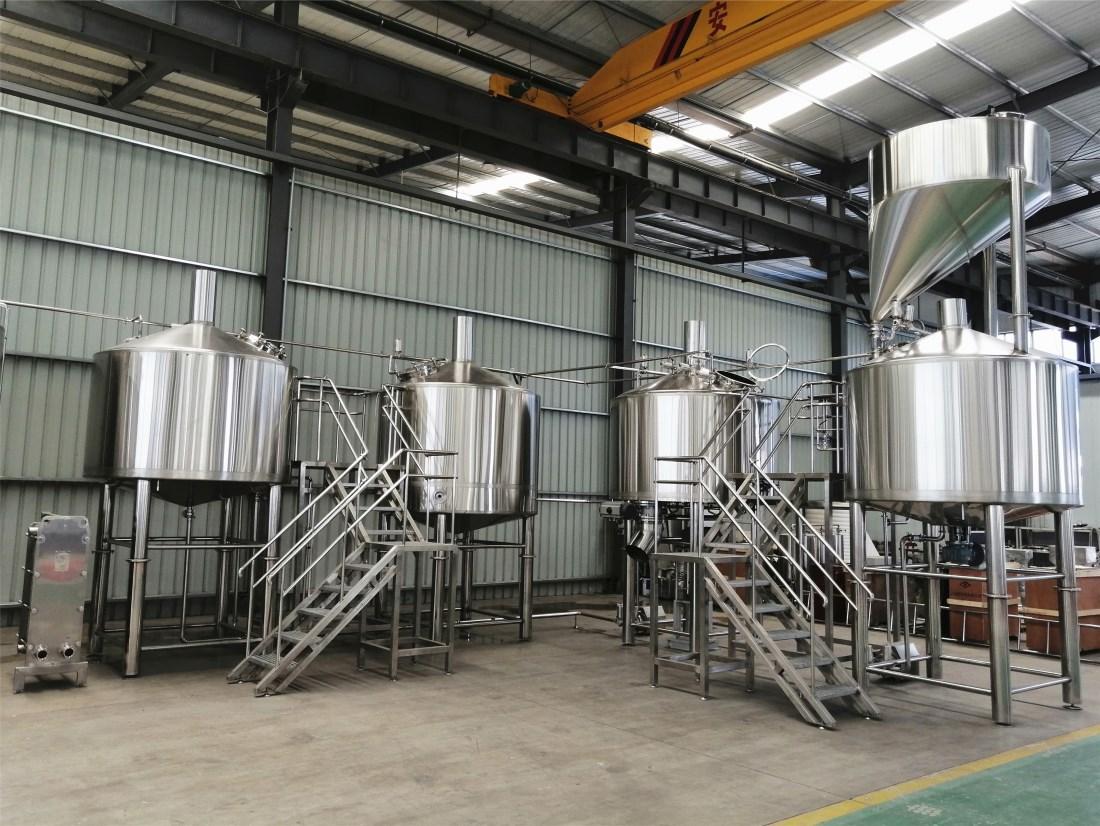

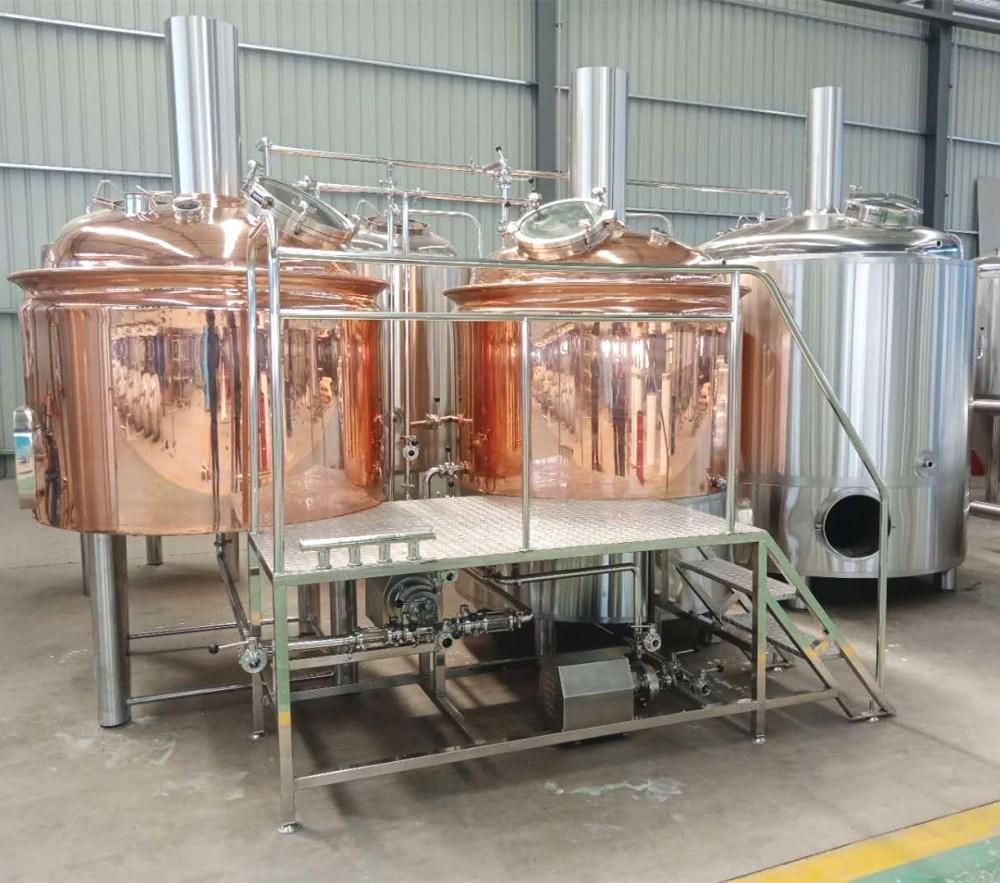

Brewhouse system:

    -Inner wall SUS 304, 3mm;

     -surface wall stainless steel 304  or copper, 2mm

    -insulation: polyurethane/rockwool 100mm;

   -Top manway with glass

    -with inside 360 degree CIP ball, sparging arm, agitator, removable false bottom

     ........

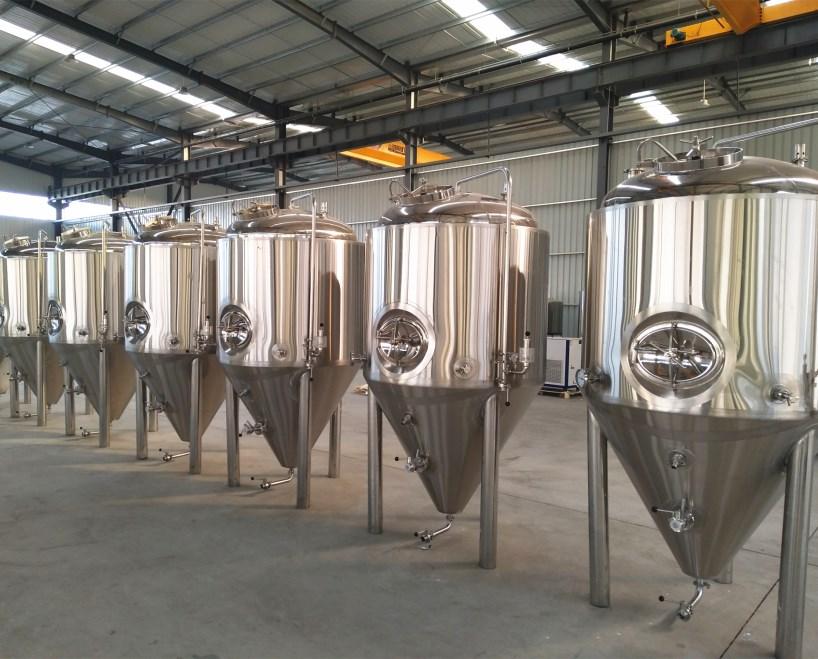

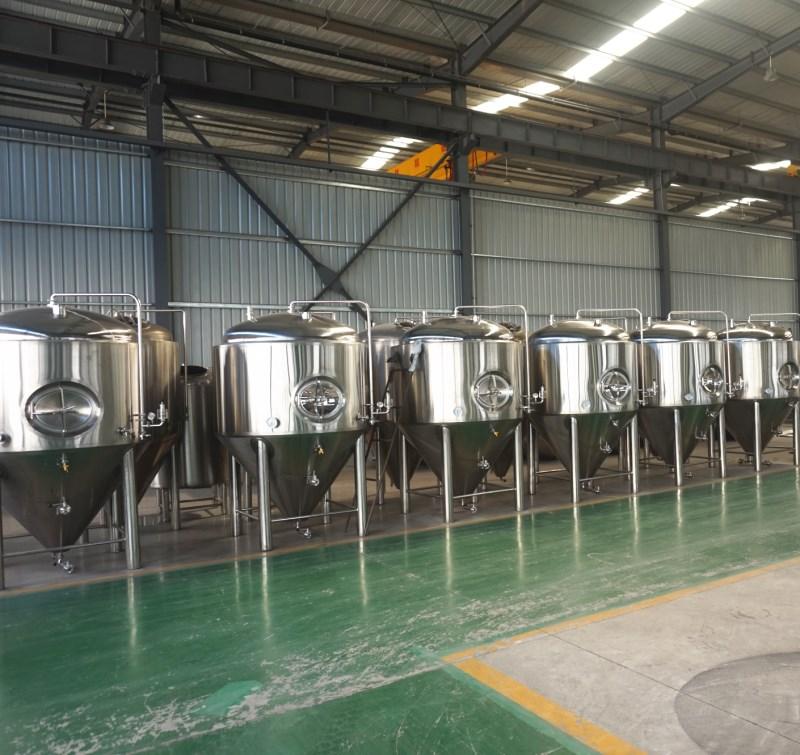

 Fermentation system:

    -Inner wall SUS 304, 3mm;

   -surface wall stainless steel 304  or copper, 2mm

  -Side mounted manway

  -Conical fermenter

  -Insulation: polyurethane 100mm

  -Inside 360 degree CIP washing ball;

  -safety&vacuum va e

 -sample va e

 -rotating racking arm

 -dry hops port on top

 -carbonaion stone(optional)

 -100% TIG welding with pure argon gas shield

 -Interior Finish: Mirror polishing to 0.4~0.6μm without dead corner



For your information:

1For electric machine parts, we use SIEMENS, SCHNEIDER, DANFOSS, OMRON, ABB....etc. And UL standard.

 2. We have the capacity of 100L, 200L, 300L, 500L, 1000L, 1200L, 2000L, 3000L, 5000L, 8000L...(1bbl, 2bbl, 5bbl, 10bbl....) per patch for your choice.

      It can be customized, such as the capacity(dimension can be customized), material(stainless steel 304/316 or copper), voltage(like 380v, 50Hz, 3phases), heating source(electric, steam or gas fired heating), etc.



 3. The brewer can also brew draft beer, pale beer, brown beer, stout beer etc.

   ALE, LAGER....





Brewpub 500L beer brewery equipment brewery fermentation equipment beer brewing machine

Brewpub 500L beer brewery equipment brewery fermentation equipment beer brewing machine

Brewpub 500L beer brewery equipment brewery fermentation equipment beer brewing machine

Brewpub 500L beer brewery equipment brewery fermentation equipment beer brewing machine

Brewpub 500L beer brewery equipment brewery fermentation equipment beer brewing machineBrewpub 500L beer brewery equipment brewery fermentation equipment beer brewing machineBrewpub 500L beer brewery equipment brewery fermentation equipment beer brewing machine











Payment Terms︰ T/T, L/C, Western Union

Product Image
